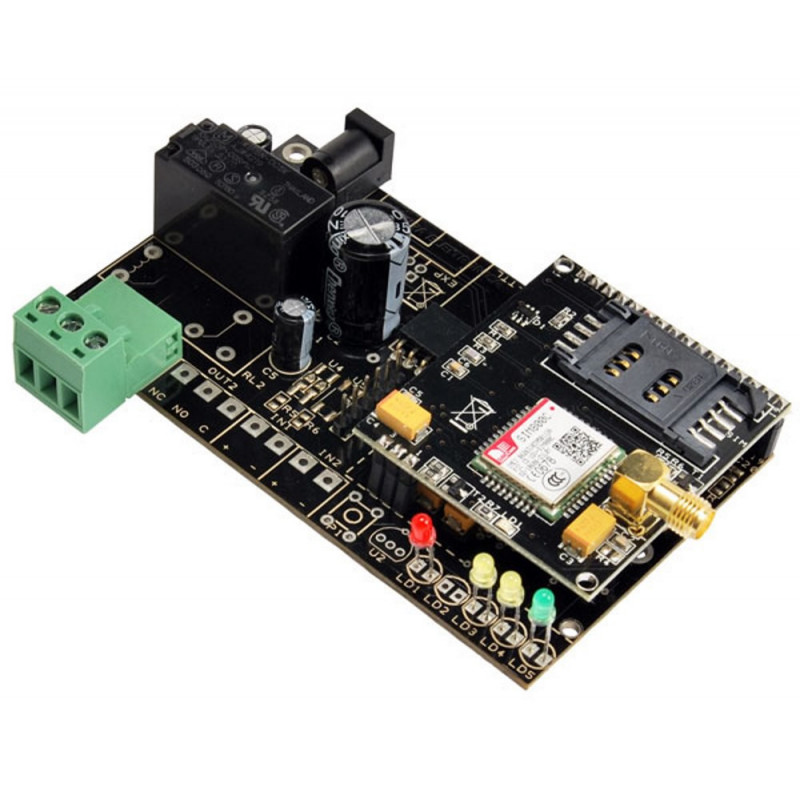

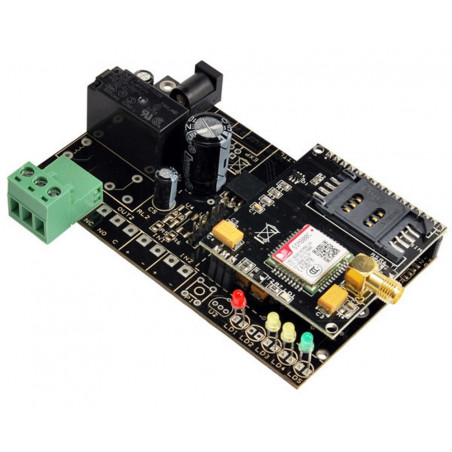

GSM GATE OPENER or SWITCH for mobile phone smartphone 9-32V DC 200 users

Thanks to this device, you can do without the traditional gate remote control and control the gate from anywhere in the world using a traditional cell phone or smartphone ! It is also ideal for remotely controlling the activation of electrical loads controlled by buttons or switches. GSM control system for use in conjunction with the electric gate opening system. The gate can be operated by making a call with your cell phone to the number of the SIM card inserted in the GSM unit. The call is free and the device will send a command to the gate control unit, which will open or close it. User management is remote via SMS (authentication password required) or locally via PC (via optional FT782M interface not included but available separately ) and dedicated configuration software. Power supply from 9 to 32 Vdc. The package includes: the device assembled and tested with the GSM module with SIM900 and antenna.

It supports up to 200 gate opener numbers and 8 master command and management numbers: perfect for managing access for private individuals, companies, condominiums and large buildings.

PLASTIC CONTAINER FOR THIS DEVICE AVAILABLE ON REQUEST.

Typical applications

• In SMS/DTMF mode:
  - Burglar alarm systems for residential and industrial buildings
  - Anti-theft systems for vehicles
  - Air conditioning/heating system checks
  - Checking pumps and irrigation systems
  - Industrial plant control

Technical features

• GSM/GPRS module: SIM900 quad-band (850/900/1800/1900 MHz) with integrated powerful AMR926EJ-S processor

• GPRS multi-slot class 10/8

• GPRS mobile station class B

• Compliant to GSM phase 2/2+
  – Class 4 (2 W @850/900 MHz)
  – Class 1 (1 W @ 1800/1900 MHz)

• Power supply: 9 to 32 Vdc (1 A); or a lithium-ion battery of 800÷1,000 mA/h

FAQ

1. By ringing "Gate Open Mode", the command is executed, but you also receive a text message "To execute the command, enter the password".
   If you use WIND, you need to deactivate the operator's My Wind SMS service.
