Universal Stabilized Power Supply 3–12 V DC 1 A with 6 DC Connectors and Jack – Minwa
€20.30
VAT included
Minwa universal switching power supply with selectable stabilized output of 3 / 4.5 / 5 / 6 / 7.5 / 9 / 12 V DC and a maximum current of 1 A. Includes 6 interchangeable DC connectors and jacks, selectable polarity, and a key to adjust the voltage. Compact, with an EU plug, for powering compatible devices indoors.
Secure Payments
Pay securely with Credit Card, PayPal, Amazon Pay, Bank Transfer or PostePay
Fast Shipping
We deliver throughout Europe and worldwide with UPS, DHL and DPD
Easy 30-Day Returns
You have 30 days from delivery to return the product if you are not satisfied
The Minwa MWMB10EU/6XC stabilized universal power supply is a compact solution for powering electronic devices compatible with voltages from 3 to 12 V DC . The switching technology and six interchangeable connectors allow the power supply to be adapted to different power outlets.
Selectable voltage and polarity
The output voltage is set using the selector switch and the key supplied. Seven values are available: 3 / 4.5 / 5 / 6 / 7.5 / 9 / 12 V DC . The maximum current that can be supplied is 1 A , with a maximum power of 12 W at 12 V.
Polarity is selected by orienting the interchangeable connector according to the indications printed on the cable termination.
Technical features
- Manufacturer: Minwa Electronics
- Model: MWMB10EU/6XC
- Type: universal plug-in stabilized switching power supply
- Input: 100–240 V AC, 50/60 Hz
- Output: 3 / 4.5 / 5 / 6 / 7.5 / 9 / 12V DC
- Maximum output current: 1 A
- Maximum power: 12W at 12V
- Mains plug: EU two-pin
- Protections: overcurrent, overload, short circuit and overtemperature
- Energy efficiency: Level V
- Use: indoors
- Gross weight: 150 g

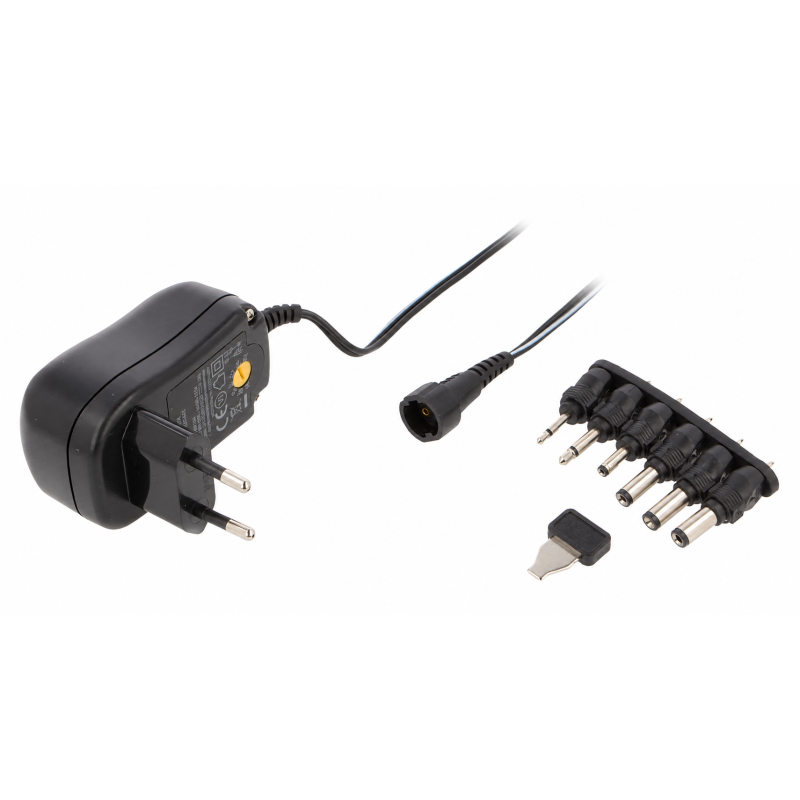

Connectors included
The kit includes six interchangeable connectors:
- DC plug 3.5 × 1.35 mm
- DC plug 5.5 × 1.5 mm
- DC plug 5.5 × 2.1 mm
- DC plug 5.5 × 2.5 mm
- 2.5mm jack
- 3.5mm jack
Compatibility check
Before connecting, check that the voltage, polarity and connector size match those required by the device and that its current draw does not exceed 1 A. Set the correct voltage and polarity before powering the device.
MWMB10EU-6XC
8595025367136
9 Items
Data sheet
- Tipo
- Alimentatore a spina switching
- Modello
- MWMB10EU/6XC
