InterCom GSM call forwarding for intercom or elevator emergency calls

Module mmultifunction GSM Intercom

• Can be used with all 4-unit apartment buildings
• 2 relay outputs can be controlled by DTMF codes during the call
• Free gate opening for up to 1000 phone numbers
• Power source monitoring, optional ProBattery for uninterrupted operation
• 16,000-entry event log, continuous monitoring of GSM signal quality
• Night sleep mode: You can set a time range when the module will not forward incoming calls
• Programming via SMS or PC and Android

USB PROGRAMMING DRIVE INCLUDED FOR PC WITH FREE PROREAD SOFTWARE!

The module can be combined with a 4-apartment intercom system. Each apartment can be assigned a primary phone number and a 1-to-1 backup phone number. The GSM intercom establishes communication via the GSM network. Therefore, the range is unlimited; furthermore, all that is required to operate the module is a power source.

After answering the call, we can control two outputs separately. The device allows us to control, for example, a gate and a magnetic door separately.

Using caller ID, we can handle output for 1,000 phone numbers. Without caller ID, we can trigger output from any number.

We can send SMS or voice messages when there is a power outage. A lithium-polymer battery, equipped with a quick connector, allows operation even for 24 hours.

The module can be combined with 4+n intercom systems: you can use the intercom you prefer. We've already tested it with nine different brands.

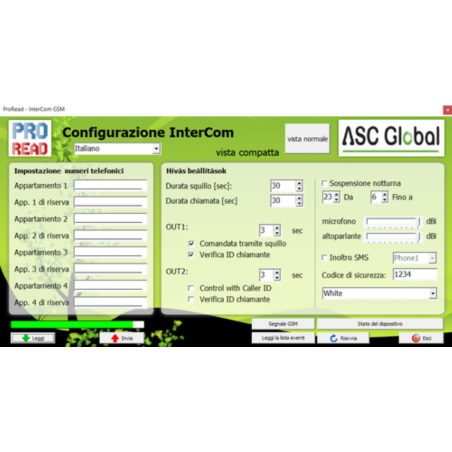

Programming is possible via SMS, voice menu, Android (Bluetooth), or PC (USB or Bluetooth) with ProRead software (requires a separately sold programmer). The GSM device measures and records the GSM signal every hour, which can be read and tracked. The module can store up to 16,000 events, including input and output statuses, power resets, GSM network and module status information, incoming and outgoing calls, and SMS messages.

NOTE: Add the Eco USB programmer to easily program the device via PC with the free ProRead software!

Fields of application:

• Wireless intercom
• Opening gates, barriers, garages
• External power supply (230V)
• Elevators
