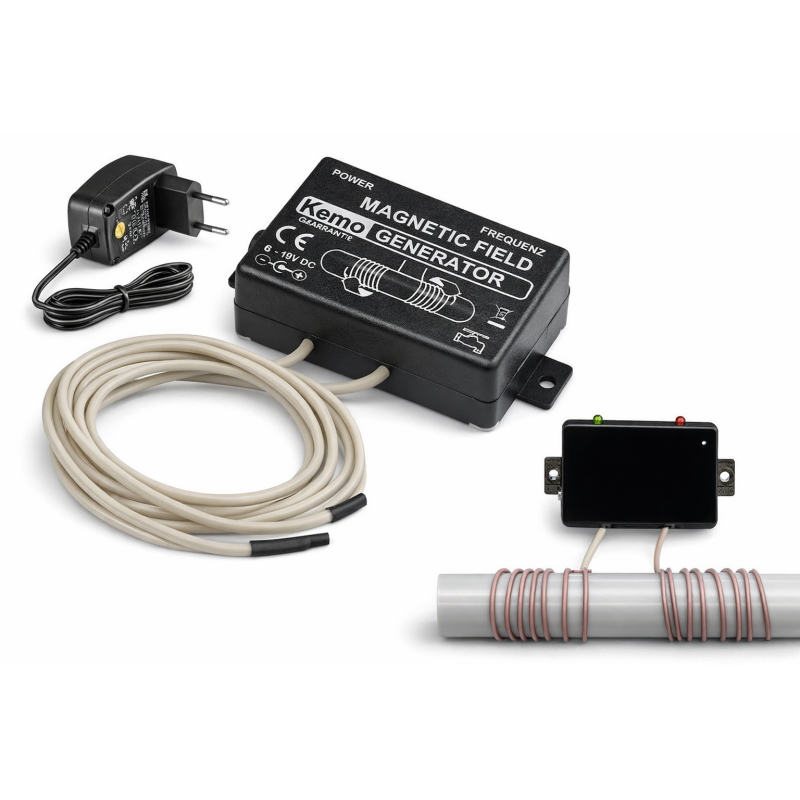

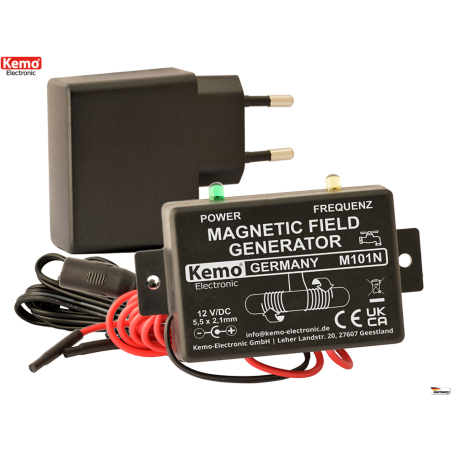

ANTI-LIMESCALE MAGNETIC ELECTRONIC DESCALER PIPES + PLUG POWER SUPPLY

This device permanently solves the problem of limescale buildup in water pipes, which can damage appliances and faucets when they come into contact with your water supply. Limescale is usually solved with chemical components, which, however, can be polluting and require ongoing purchase and use.

With the electronic anti-limescale, however, you can eliminate the limescale problem forever using a device that does not pollute and has low electricity consumption (max 2W).

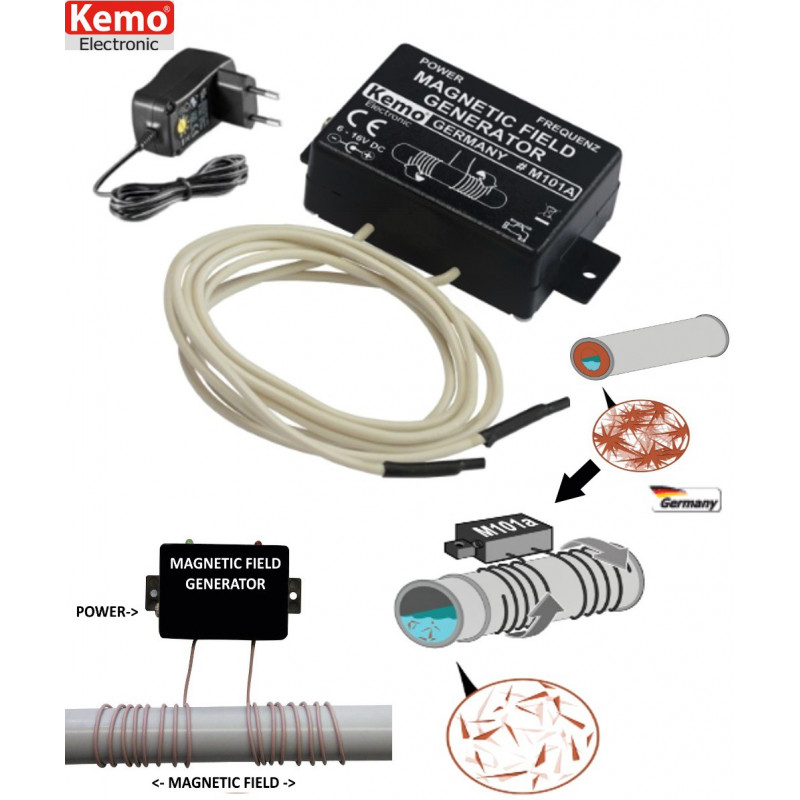

Installation is very simple and takes place directly on the pipe, possibly in the central pipe immediately after the meter to protect all household devices, by wrapping the two supplied wires in opposite directions on the pipe as indicated in the manual, then connecting the device to a 6 to 16V DC power supply and the device is already able to operate.

During operation, the device generates a low-intensity electromagnetic field on the tube (where the winding is located) at a pulse frequency of approximately 2000 Hz. At this frequency, the lime molecules are placed in an ionized crystalline form, making it more difficult for the bond that leads to limescale formation. This allows for water that is completely unchanged in terms of mineral salts, which are important for health, or chemical content, but which is much more friendly to household appliances and devices that come into contact with water in bathrooms, as the bond that leads to limescale has a much smaller effect.

MANUAL | ITALIAN MANUAL | APPLICATION EXAMPLE AND DETAILS | LABORATORY TEST

SPECIFICATIONS

• Operating voltage 6...16V DC (can be used with 230V AC via the supplied power supply)

• Absorption < 130mA

• Power consumption less than 2W

• Operating frequency <2000Hz

• For copper, plastic, steel pipes with diameters from 8 to 80 mm

• Maximum flow rate ^5m3 /h

• Cables to be arranged in a coil in opposite directions

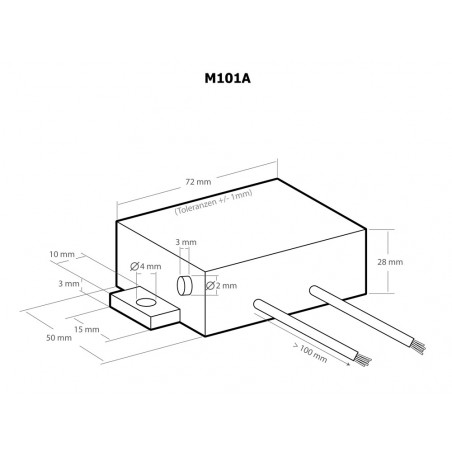

• Dimensions approximately 72x50x28mm

• Support for screw or cable tie mounting

• Operation indicator LED
