MIFLEX FP-250/16-4N7 250VAC EMI Anti-Noise Mains Filter for Household Appliances
€16.60
VAT included
MIFLEX FP-250/16-4N7 250VAC EMI Noise Filter for Household Appliances
Pagamenti Sicuri
Paga in totale sicurezza con Carta di Credito, PayPal, Amazon Pay, Bonifico Bancario o PostePay
Spedizione Rapida
A partire da 6,49€ in 2–4 giorni o Express 24/48h a 9,90€ SDA, UPS, DHL, BRT, Punto Poste o Ritiro
Reso Facile 30 Giorni
Hai 30 giorni dalla consegna per restituire il prodotto se non sei soddisfatto
MIFLEX FP-250/16-4N7 250VAC EMI Noise Filter for Household Appliances
This device blocks typical electrical network disturbances, protecting the load and the electrical network. It is mandatory in all household appliances or devices that can cause disturbances to the electrical network or be affected by them. It is commonly used in washing machines, dishwashers, and computer power supplies.
It allows you to filter loads with absorption up to 16A and a voltage of 250V at a temperature of 40°C. It can be used as a replacement for any type of electronic device with a damaged or missing mains filter.
The format is ideal in particular for household appliances and machines for home and office.
SPECIFICATIONS
- Producer MIFLEX
- Filter type anti-disturbance
- Type of network filter
- Cx capacity 0.47µF
- Cy Capacity 4.7nF
- Single winding inductance 1mH
- Resistence 680kΩ
- Max. working current 16A
- Exits 6.3mm connectors
- Case material plastic

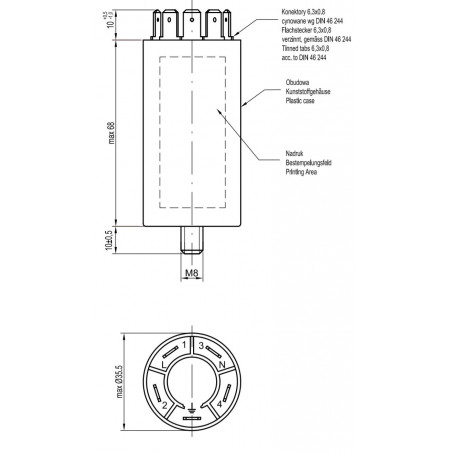

- Case dimensions Ø 35.5x68mm
- Fixing M8 screw
- Working voltage 250V AC Additional Information
- Gross weight: 97.8 g
FP-250/16-4N7
7431902133108
5 Items
Data sheet
- Height
- 68 mm
- Width
- 35.5 mm
- Weight
- 0.1
- Tipo
- Filtro EMI
- Modello
- FP-250/16-4N7
MIFLEX FP-250/16-4N7 250VAC EMI Noise Filter for Household Appliances
