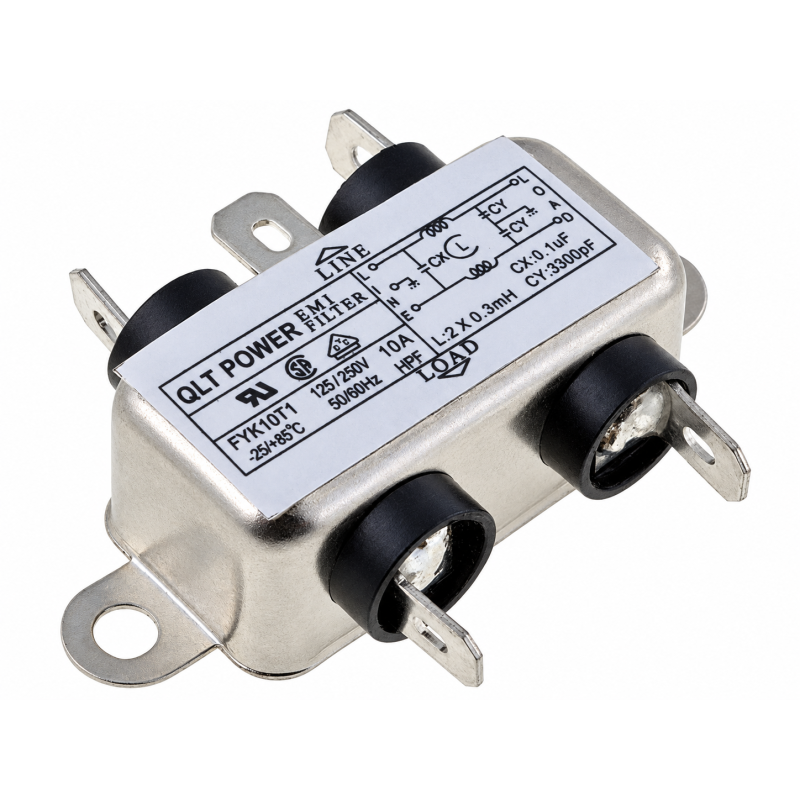

QLT POWER FYK10T1 250 V AC 10 A EMI anti-interference mains filter with Faston

The QLT POWER FYK10T1 is an EMI noise filter for reducing electromagnetic interference on the power supply lines of compatible electrical and electronic equipment. It supports a working voltage of 250 V AC and a maximum current of 10 A.

This version uses 6.3 x 0.8 mm Faston terminals for connections. The metal case features mounting holes.

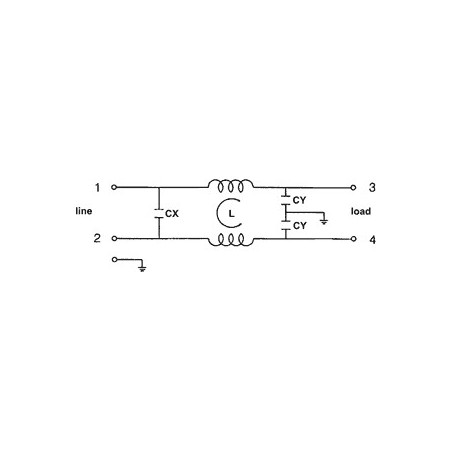

Connections

• Input: phase, neutral and earth
• Output: phase and neutral
• Terminals: Faston 6.3 × 0.8 mm

Technical features

• Manufacturer: QLT POWER
• Model: FYK10T1
• Series: FYK
• Type: EMI noise filter
• Working voltage: 250 V AC
• Maximum working current: 10 A
• Inductance of each winding: 0.3 mH
• Capacitance Cx: 100 nF
• Capacitance Cy: 3.3 nF
• Leakage current: 0.8 mA
• Working temperature: −25 to +85 °C
• Minimum insulation resistance: 100 MΩ
• AC test voltage: 1.8 kV

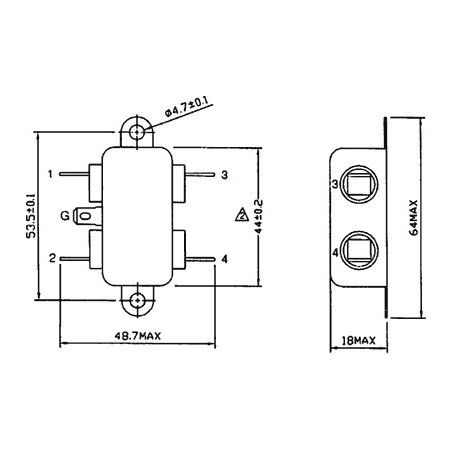

• Mounting hole diameter: 4.7mm
• Mounting hole spacing: 53.5 mm
• Gross weight: 30 g

Use and compatibility

Suitable for mains filtering and as a replacement for a damaged filter when the electrical specifications, connections, and mounting dimensions match those required by the appliance. Before purchasing, check the current draw, size, and mounting points.

The component operates on mains voltage: installation must be carried out by qualified personnel, respecting the connection diagram and the manufacturer's instructions.
