MOXA TCC-80 Industrial Converter RS-232 to RS-422/RS-485 Port Powered
€55.00
Tax included
MOXA TCC-80 industrial serial converter for RS-232 to RS-422/RS-485 conversion, 2 or 4 wires. Powered directly from the RS-232 port or via an external 5-12 VDC power supply. Automatic RS-485 direction control, integrated termination, and ESD protection. New product from professional stock, supplied loose without commercial packaging.
Secure Payments
Pay safely with Credit Card, PayPal, Amazon Pay or Bank Transfer
Fast Shipping
We ship across Europe and worldwide with UPS, DHL and DPD
30-Day Easy Return
You have 30 days from delivery to return the product if you're not satisfied
MOXA TCC-80 – RS-232 to RS-422/RS-485 Converter

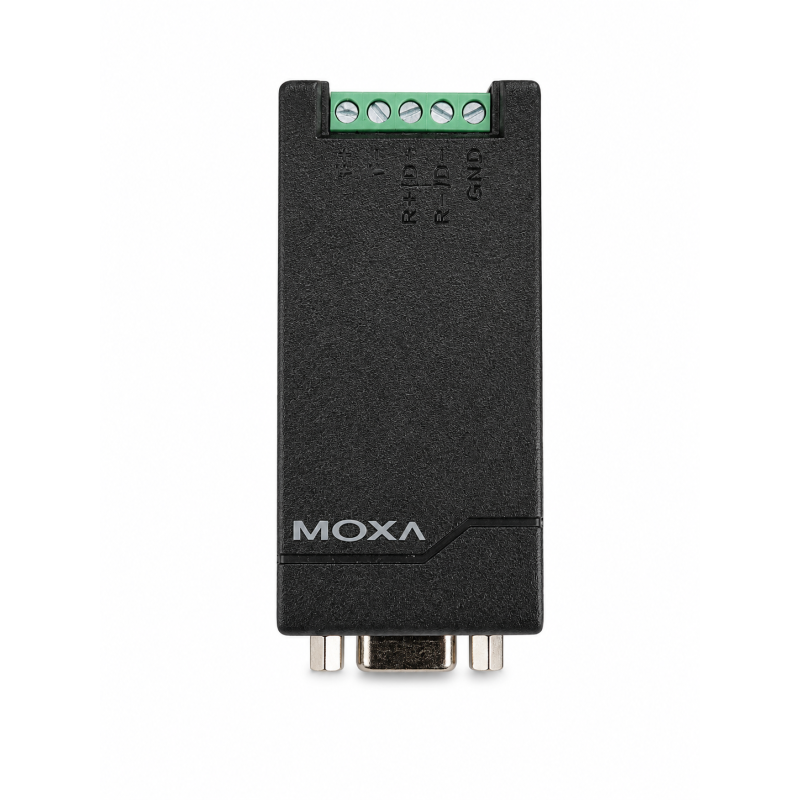

The MOXA TCC-80 is a professional serial converter designed to connect devices with an RS-232 interface to industrial equipment using RS-422 or RS-485 communications.
It supports 2-wire RS-485 half-duplex and 4-wire RS-422/RS-485 full-duplex communications, making it particularly suitable for industrial automation, PLC, supervision systems, data acquisition, instrumentation, access control and equipment equipped with serial communication.

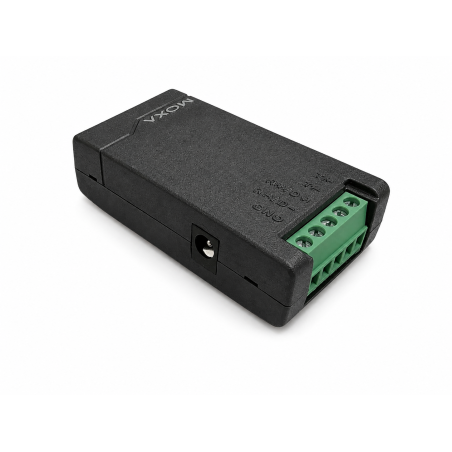

A particularly useful feature of the TCC-80 is the ability to operate using power drawn directly from the RS-232 port, without necessarily requiring an external power supply. If the serial port is unable to provide sufficient power, an external 5-12 VDC power supply can still be used.
RS-485 transmission direction is automatically managed via ADDC (Automatic Data Direction Control), eliminating the need for software to switch between transmission and reception. It supports serial speeds from 300 bps up to 115.2 kbps.

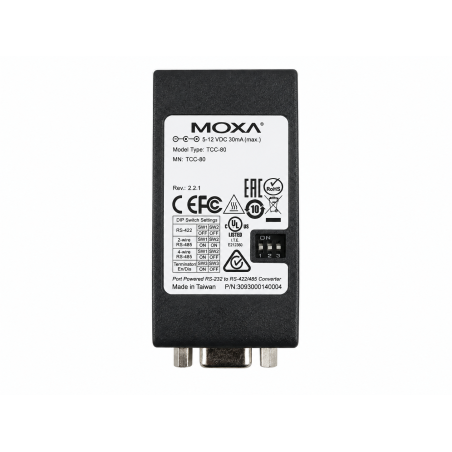

The DIP switches on the device allow you to configure the RS-422/RS-485 mode and line termination.
Conditions of supply: New product from professional stock, supplied loose without commercial packaging and without accessories, except as shown in the images. Also ideal as a replacement for existing industrial systems and equipment.
Technical specifications
- Characteristic Specification
- Brand MOXA
- Model TCC-80
- Typology Industrial serial converter

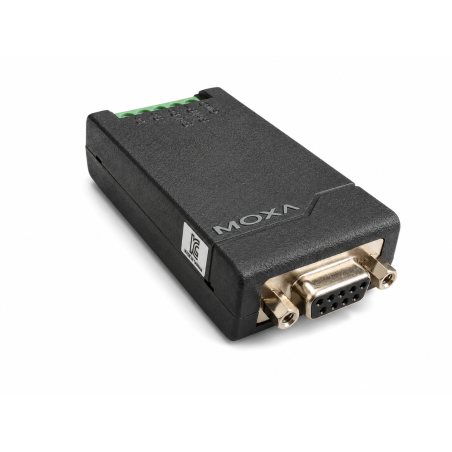

- RS-232 interface DB9 female
- Supported standards RS-232, RS-422, RS-485
- RS-485 2-wire half-duplex
- RS-422/485 4-wire full-duplex
- RS-485 direction control Automatic ADDC
- Speed 300 bps – 115.2 kbps
- Termination Integrated, configurable via DIP switches
- Termination resistance 120 Ω
- Power supply from the door RS-232
- External power supply 5–12 VDC
- Absorption 30 mA
- Serial ESD protection 15 kV
- Degree of protection IP30
- Dimensions 42 × 80 × 22 mm
- Weight about 50 g
- Operating temperature 0 ÷ 60 °C
- Installation Desktop
- Galvanic isolation No – present on the TCC-80I version
- Condition New from professional stock
- Packaging Loose
