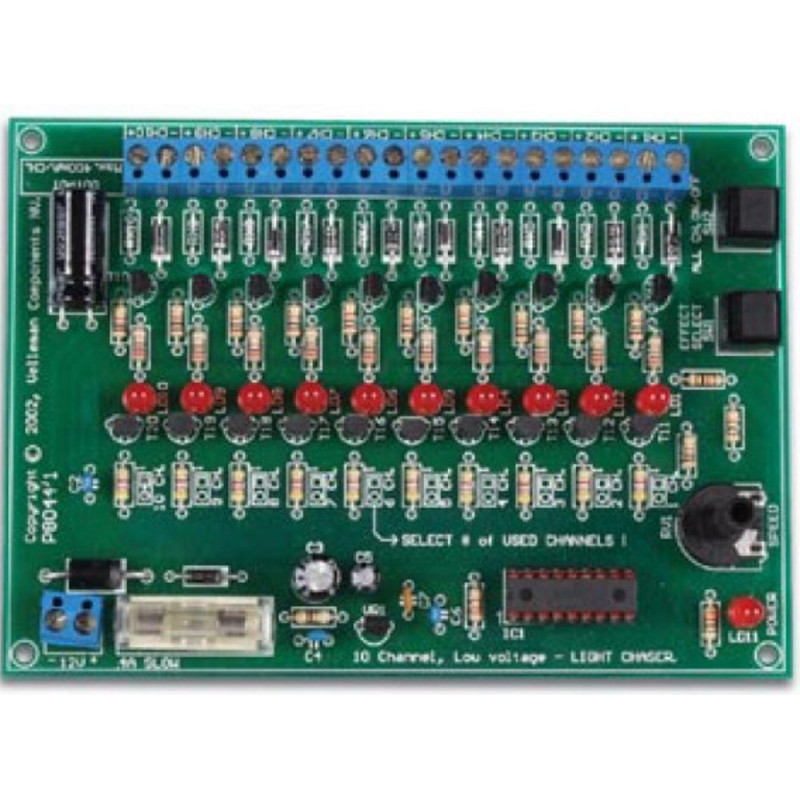

10-CHANNEL LIGHT EFFECT GENERATOR KIT 400mA PROGRAMMABLE 12V DC

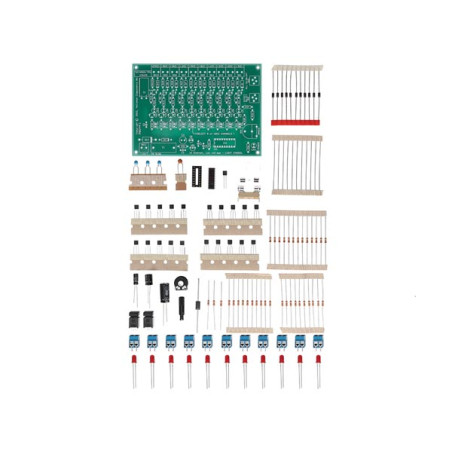

Please note: this is a KIT, so you'll receive the components to be soldered and everything you need to recreate the device as shown in the image. The KIT includes easy-to-understand illustrated instructions in English.

REQUIRED EXPERIENCE LEVEL: MEDIUM

Assembly and testing by Mectronica STORE is also available by adding quantity 40 of the KIT assembly service which can be purchased together with the KIT to be assembled.

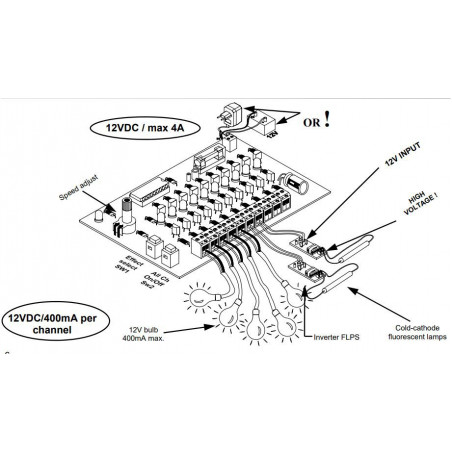

It has 10 outputs (12V/400mA) to control as many lamps, "solid state" relays, etc. It can be used to make warning lights, party lights, disco lights, etc.

CHARACTERISTICS

• It has 10 outputs of 12V/400mA characteristics to control as many cold-cathode fluorescent lamps, light bulbs, LEDs and "solid state" relays, etc.
• Can be used to make warning lights, party lights, disco lights, etc.

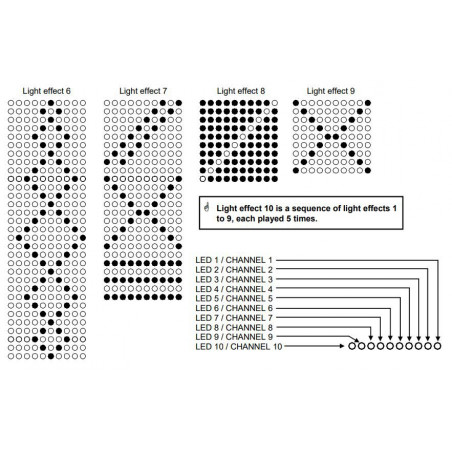

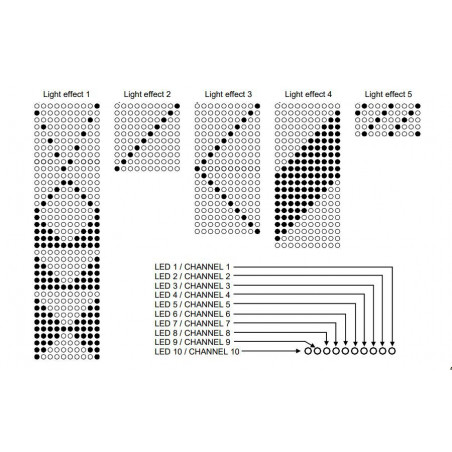

• It has 10 pre-programmed settings that can be selected via a button
• The number of channels used is adjustable
• Adjustable speed
• LED indicator for each output
• Also works at 12V to create automotive applications
• Optional:
  - - adapter (input: 90 - 260V alternating; output: 12V continuous/ 5.8A): code PSS1255
  - - power supply for cold-cathode fluorescent lamps: code FLPS (300mm) or code FLPS1 (100mm)
  - - cold-cathode fluorescent lamps: code FL(xx) - (100 or 300 mm)
  - - "solid-state" relay for controlling high loads (lamps): code VR25SS1A (1 x NO, 240V / 25A) or code VR3SS1A (1 x NO, 240V/3A)

SPECIFICATIONS

• Power supply: 12V continuous
• Maximum current draw: 4A
• Outputs: 12V continuous/400mA per channel (total: maximum 4A)
• Dimensions: 140 x 100 x 27 mm (5.5" x 3.9" x 1.1")
