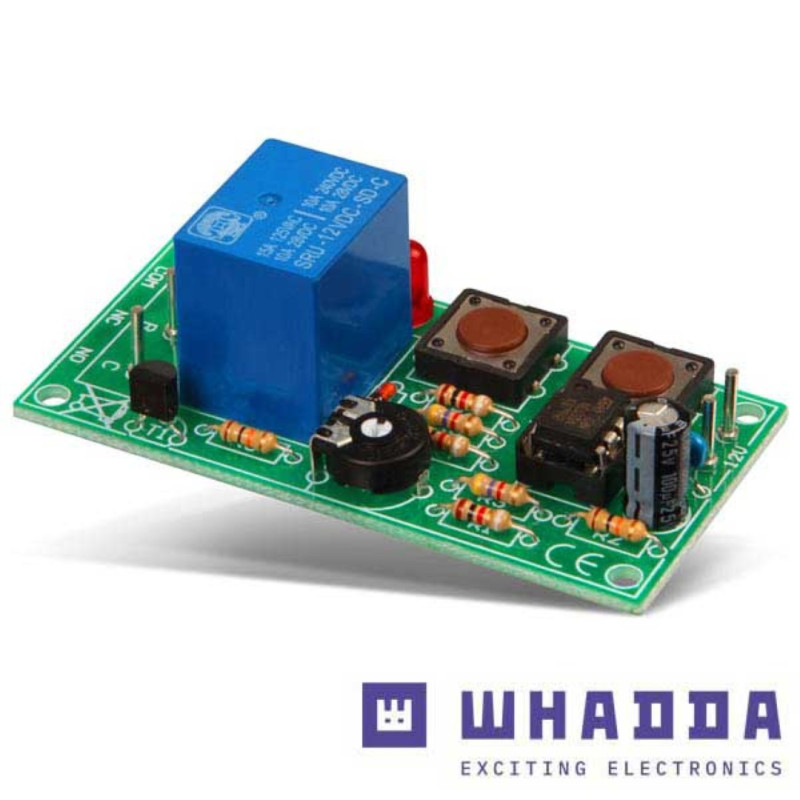

START STOP Timer KIT 0-15 Minutes 12V DC with 2A 240V output relay

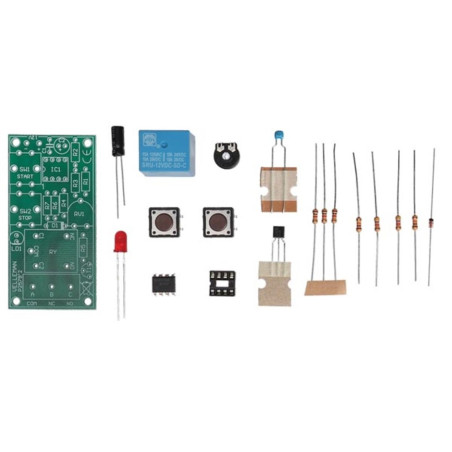

Please note: this is a KIT, so you'll receive the components you need to solder with an electronics soldering iron and everything you need to recreate the device as shown in the image. The KIT includes easy-to-understand illustrated instructions in English.

Experience level required for assembly: LOW

Also available in assembled version code K2579M

Universal timer with miniature START and STOP buttons, suitable for all applications requiring intervals of up to approximately 15 minutes. Operating times are adjustable via trimmers.

By pressing START the relay activates until the set time expires or the STOP button is pressed.

Ideal for stair light timers, extractor fans, lights, time counting.

CHARACTERISTICS

• Power supply: 12 VDC / 55 mA

• Relay: 2A / 240 V with changeover contact (NO, NC, COMMON)

• time interval (without changes): adjustable from 0 to 15 minutes

• Dimensions: 38 x 69 mm
