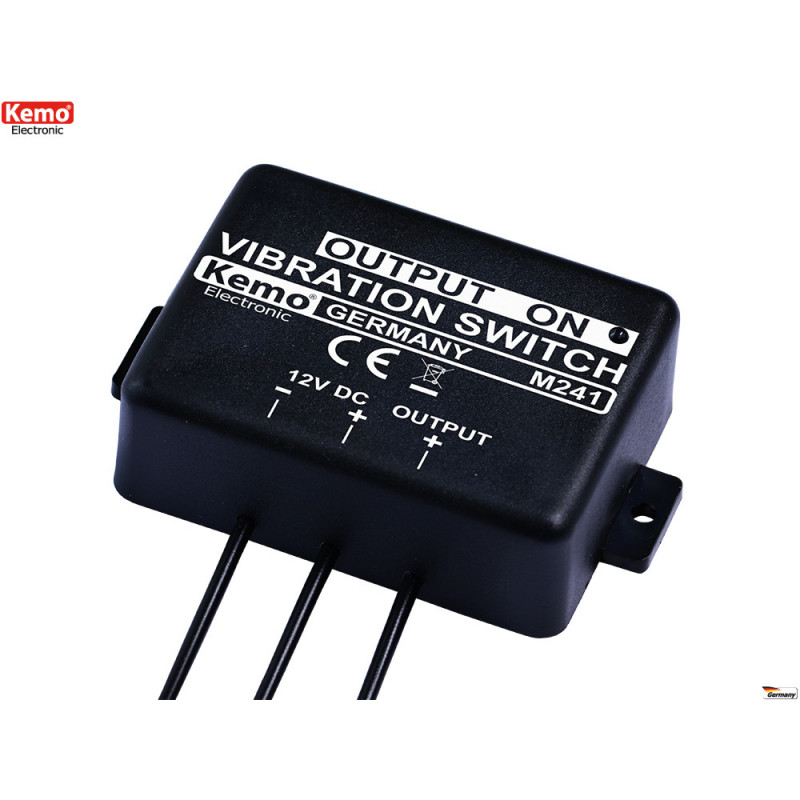

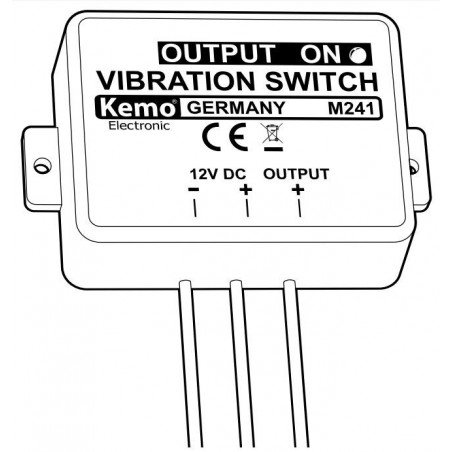

12V DC No Vibration Motion Load Activator Sensor Switch

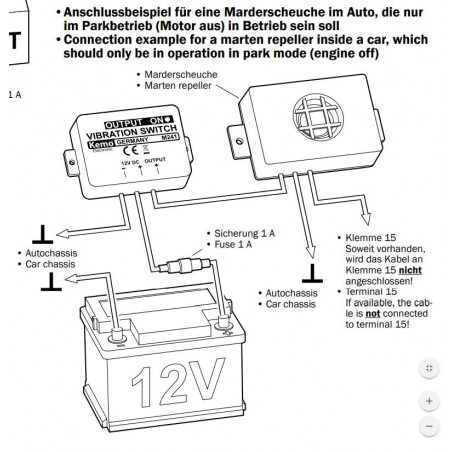

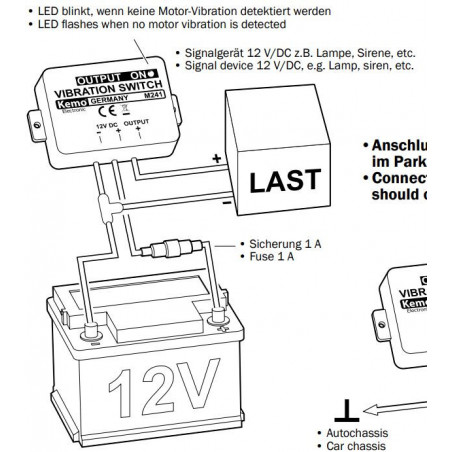

Vibration switch turns off 12V devices when vibrations occur (e.g., engine noise) and activates with a delay in idle state. Operating voltage: 11 - 15V. For devices with a current consumption of up to approx. 1000 mA. Indication via a flashing LED. For example, the vibration switch turns on. It activates the horns when a machine (e.g., the pump) switches off and stops vibrating. Or an ultrasonic repellent in the bonnet, if the vehicle no longer has engine vibrations or driver vibrations and is parked.

SPECIFICATIONS

•          Operating voltage 11 to 15 V DC
•          Current consumption during vibrations, motor strokes (LED off):
•          At rest, no vibration (LED flashes)
•          Max. switching current (maximum current drawn by the connected device) 1 A
•          At rest (without vibration), the input voltage (11 - 15 V / DC) is transferred to the output and the connected device is in operation.
•          Delay in switching off during movement approx. 3 seconds (depending on the intensity of the vibrations)
•          Power-on delay at the end of the movement approx. 22 seconds
•          Switching sensitivity approximately adapted to the vibrations of a combustion engine in a motor vehicle
•          Operating temperature range approx. -20°C to +70°C
•          Dimensions (without fastening straps) approx. 60 x 45 x 20 mm
