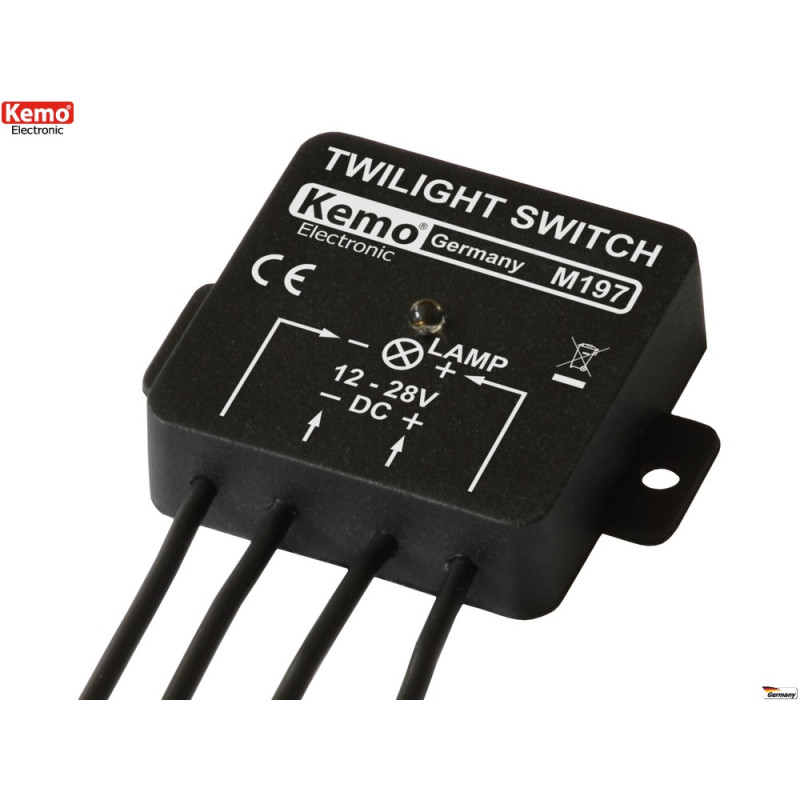

12-28V 5A Voltage Output External Internal Twilight Sensor Switch

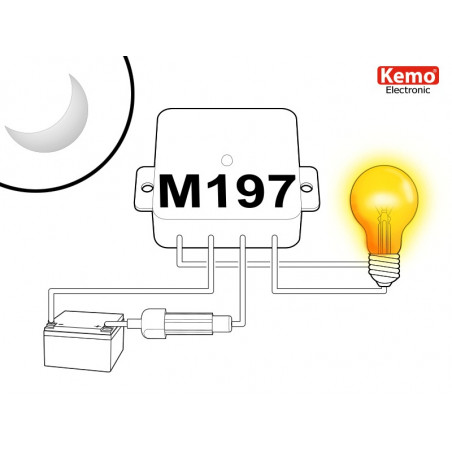

This electronic twilight switch automatically activates or deactivates any electrical or electronic device based on the presence or absence of light. The device has a voltage output equal to the supply voltage (max 5A) for direct connection to low-voltage lights, electrical and electronic devices, and external relays.

The connected load is automatically powered at nightfall and switched off when light returns in the morning.

The device is housed in a completely waterproof white plastic container and the circuit board and all electrical parts are embedded in solid resin, making the sensor suitable for outdoor use and completely waterproof.

By using external relays with low voltage coils, it is possible to increase the load that can be controlled by the device.

CHARACTERISTICS

• Power supply 12-28V DC

• Voltage output (voltage equal to power supply) max load 5A

• Plastic watertight container with resin circuit

• Ideal for: caravans, trucks, boats, houses (with possible battery power supply)

SPECIFICATIONS

• Power supply voltage 12-28V DC

• Sensor current consumption <0.5mA

• Active load during blackout

• Voltage output (voltage equal to 12-28V DC power supply) max load 5A

• Maximum voltage output current 5A

• Night activation threshold approximately 25 LUX

• Daytime deactivation threshold approximately 45 LUX

• Reaction delay approximately 4 seconds

• Dimensions 40x40x12

• Screw connections for installation

• Protected against short circuits on the load

• English, German, French manual

• Made in Germany
