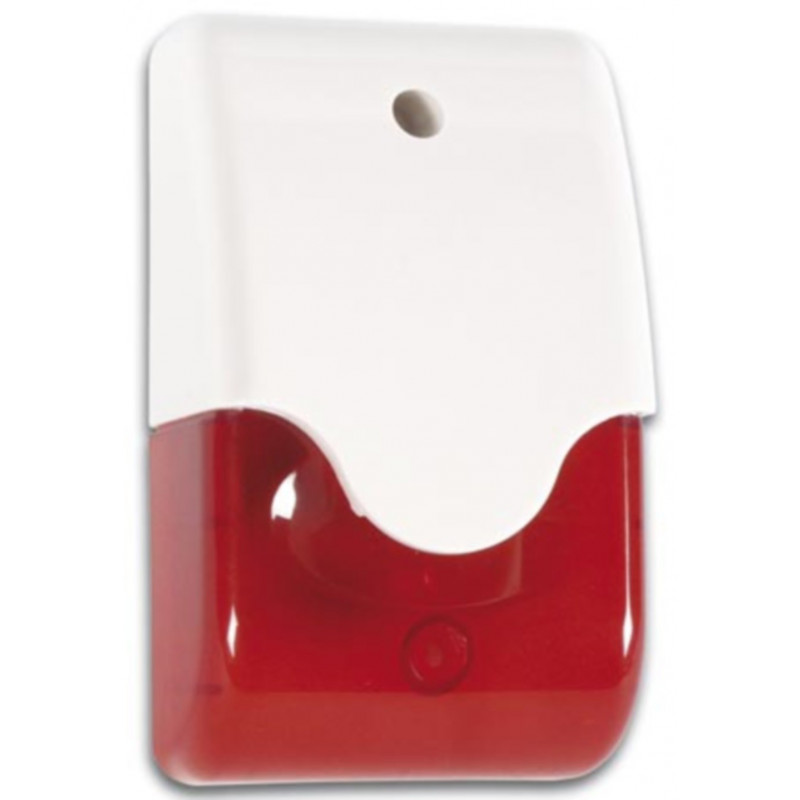

110 dB Alarm Siren with Red LED Flash, 6–15 V DC – SV-PSL3R

Acoustic and luminous signalling for alarm systems

The SV-PSL3R combines a 110 dB siren with a red LED flasher to signal the activation of an alarm system. It is intended to be used with an existing system in homes, offices, and other environments that require audible and visual signaling.

Main features

• Two functions: flashing only or flashing with siren.
• Light signal: Red LED light with four flashing lights.
• Acoustic signalling: declared sound level of 110 dB.
• Polycarbonate case: shock and UV resistant.
• Electrical protection: against reverse polarity.
• Power supply: 6 to 15 V DC.

Usage

Suitable as a signaling device for burglar alarms and alarm systems, with the option of activating either the light signal only or the light and sound signal. The device must be connected to an external control system.

Technical specifications

• Model: SV-PSL3R.
• Supply voltage: 6–15 V DC.
• Declared current consumption: 200 mA for the siren and 250 mA for the flashing light.
• Declared sound level: 110 dB.
• Flashing color: red.
• Light technology: LED.
• Case material: polycarbonate.
• Dimensions: 120 × 74 × 42 mm.
