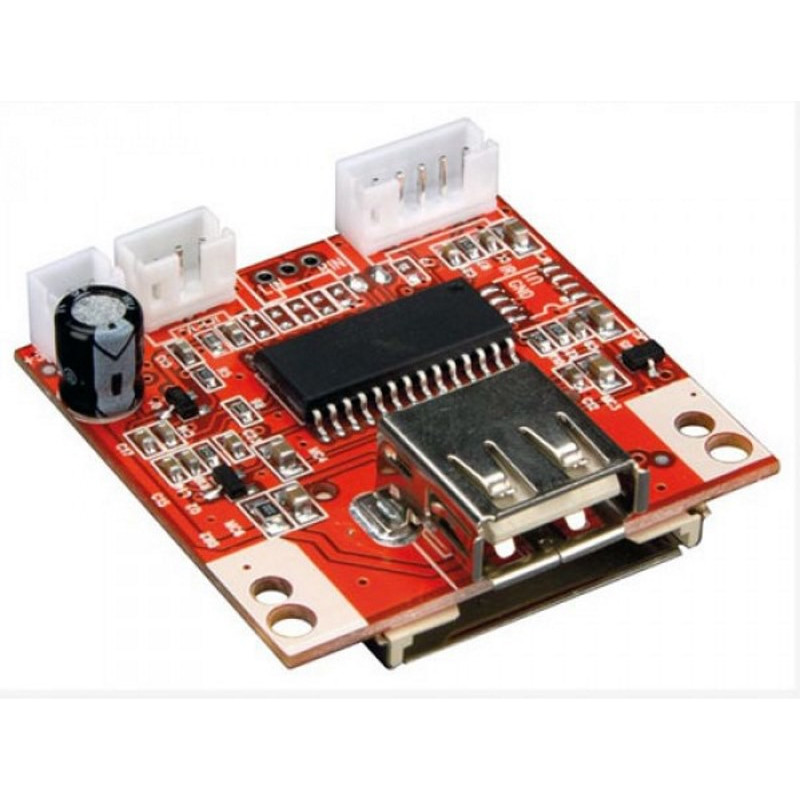

Miniaturized JUKEBOX SD card + USB MP3 player module with stereo audio output

Small card (45x40x8 mm) capable of directly playing MP3 files stored on a USB memory stick or SD card (not included). It has a connector for connecting 3 function buttons: Play / Pause, next track, previous track. There is also a stereo audio output for connecting to an amplifier input, a play/pause indicator LED. Power supply: 5 to 12 Vdc / 50 mA. The package includes: the MP3 jukebox module, the 68 ohm/1watt resistor, a 15 kohm resistor and a 33 kohm resistor to connect to the buttons, a 3 mm red LED, two cables with pre-assembled connectors and the 14 Vdc-5 Vdc voltage reducer. NB the buttons are not included.

Need a power amplifier to use with this product? Find them in our eBay store | MECTRONICA STORE

Technical specifications

• Supported formats: mp3 (variable bit rate 128 kb/s, 192 kb/s, 256 kb/s, 320 kb/s)

• Audio output: stereo 500 mV / 47 kOhm

• Diet:
  - 5 Vdc or 9 to 12 Vdc / 50 mA max. (via included adapter)
  (For use in cars, it is necessary to insert the 68 ohm / 1 W resistor found in the package in series with the positive terminal)

• Dimensions: 45x40x8 mm
