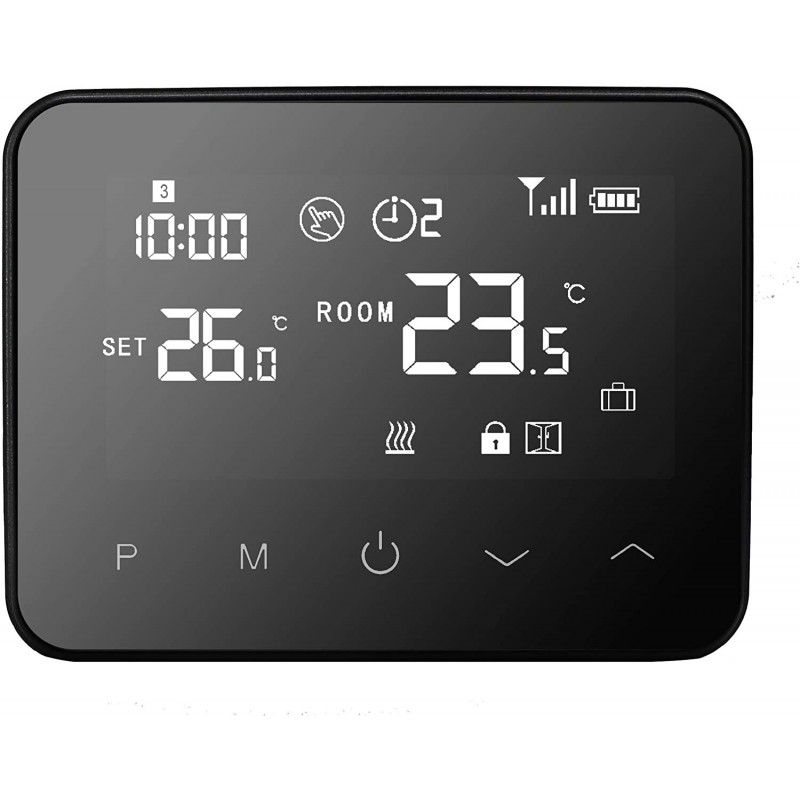

Comfort.me DUO Smart Wireless Wi-Fi NA NC programmable thermostat for all boilers

USEFUL LINKSMANUAL|BROCHURE

Comfort.me DUO is the line of digital and programmable chronothermostats via App with a modern and elegant design. An intelligent and smart solution for energy saving and efficiency control,VERSION with NO and NC contacts suitable for boilers with classic clean contact activation contact.

Wi-Fi programmable thermostat compatible with all boilers

Comfort.me DUO NO / NC is ideal for replacing the current thermostat with a solution that allows you to control the heating of your home at any time of the day. Thank you to the dedicated APP it will be possible to manage the temperature at any time and in any place.

Why choose Comfort.me DUO NO / NC?

•         Save up to 30% on gas and electricity consumption.
•         Comfort.me DUO is designed for wireless operation.
•         Compatible with all boilers.
•         Quick and easy programming via application.
•         Compatible with Amazon Alexa and Google Assistant.

Technical information and installation methods

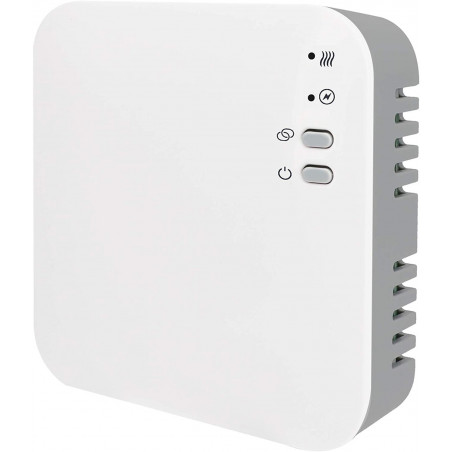

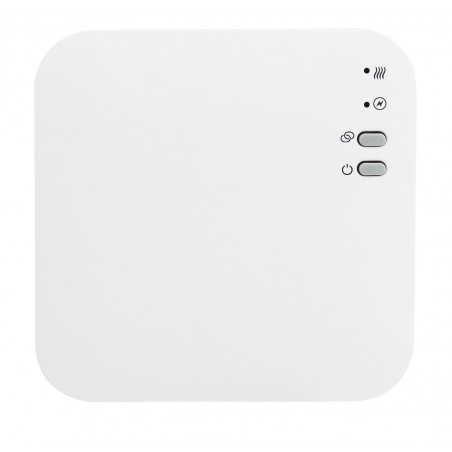

By purchasing the new Comfort.me DUO NO / NC you will receive, in addition to the thermostat, also the boiler control unit. It has the task of receiving information from the chronothermostat and of activating, switching on and off the connected device. The reception range is about 30 meters in open field.

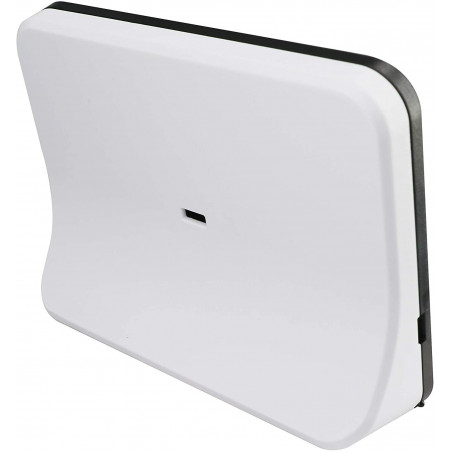

Compared to previous versions, Comfort.me DUO has a dual installation: wall and wireless. Thanks to the accessory supplied, the thermostat can be positioned comfortably on any surface of the house and powered via the convenient MicroUSB cable. The communication between the thermostat and the control unit, in both installations, takes place thanks to wireless technology.

Thanks to the dedicated application you can:

•         Manage hourly and daily schedules.
•         Increase or decrease the room temperature at any time.
•         Adapt the temperature to the external weather.
•         Turn the boiler on or off when you are away from home, thanks to the GPS function.

SPECIFICATIONS

•         Thermostat power supply: MicroUSB; 5V / 1A
•         Backup storage: EEPROM
•         Control unit power supply: 230 VAC, 50/60 Hz.
•         Maximum voltage / load (ohm): 250 VAC / 10 A.
•         Wireless frequency: 868MHz.
•         Programming: 7 days, 4 periods per day.
•         Control unit switches functionality: NO / NC.
•         Temperature settings: 5 ° C ~ 35 ° C, 0.5 ° C increment.
•         Accuracy: +/- 0.5 ° C.
•         Thermostat size: Wall mount, 125 * 98 * 23.5mm.
•         Controller Size: Wall Mount, 90 * 90 * 26mm.
•         Black colour.
•         IP protection: 20.
•         Certification: CE, Rohs, RED.

Package Contents

•         1x Comfort.me DUO NO / NC
•         1x Power cable
•         1x Receiving unit
•         1x Fixing accessories
•         1x Instruction Manual
