Digital Wired Thermostat with Backlit Display for Heating and Air Conditioning

The digital wired thermostat is designed for the automatic control of heating and air conditioning systems, ensuring simple and effective management of the room temperature.

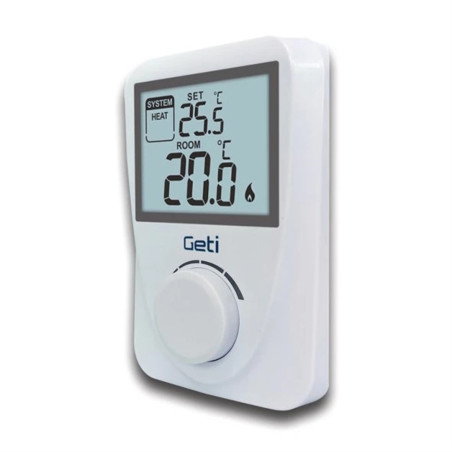

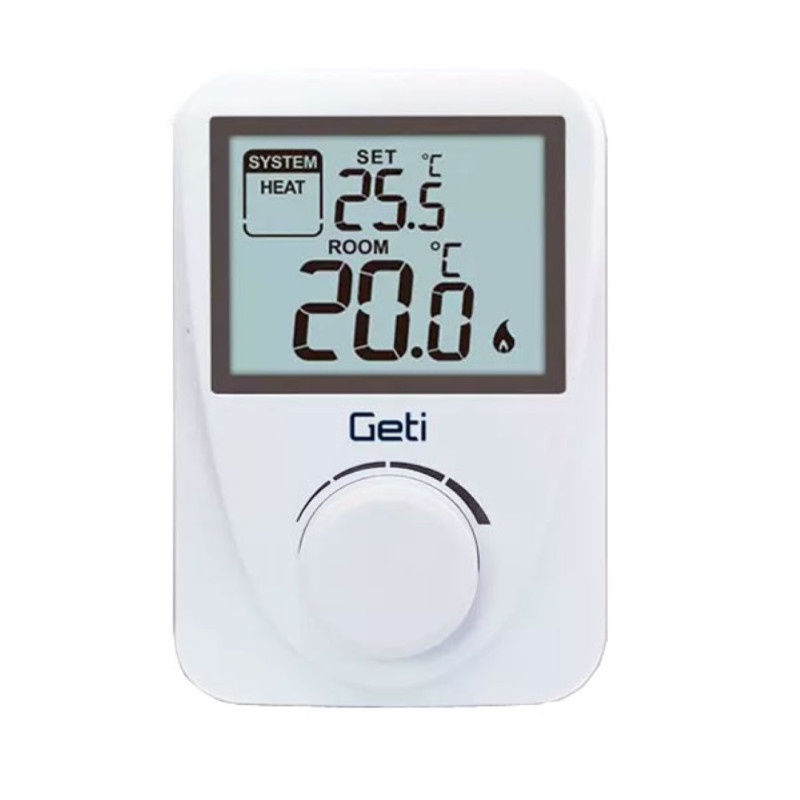

It features a large white backlit display with large numbers and a clear indication of the detected temperature, for immediate reading even in low light conditions. The temperature adjustment range is from +5°C to +35°C , in 0.5°C increments, allowing for precise settings based on the needs of the environment.

The device integrates a relay for controlling resistive or inductive loads , making it suitable for numerous domestic and professional applications. Temperature measurement accuracy is approximately ±1°C at 20°C , ideal for stable and reliable use.

There is an antifreeze function , useful for protecting the heating system in case of very low temperatures, as well as a low battery indication , which warns the user when it is necessary to replace the batteries.

Thanks to its simplicity of use, the thermostat works exclusively in ON/OFF mode, activating or deactivating the system based on the set temperature, without time programming.

Possible uses

• Domestic heating system inspection

• Air conditioning systems

• Temperature control of machinery

• Server rooms

• Leavening cells

• Technical and professional environments

Equipment

• Digital thermostat

• 2 x 1.5V AAA batteries (included)

• Instruction manual in Italian

Technical specifications

• Time programming: No (ON/OFF control based on temperature only)

• Frost protection: Yes

• Temperature display range: 0°C ÷ +40°C (0.1°C steps)

• Temperature regulation range: +5°C ÷ +35°C (0.5°C steps)

• Measurement accuracy: approximately ±1°C at 20°C

• Power supply: 2 x 1.5V AAA batteries (included)

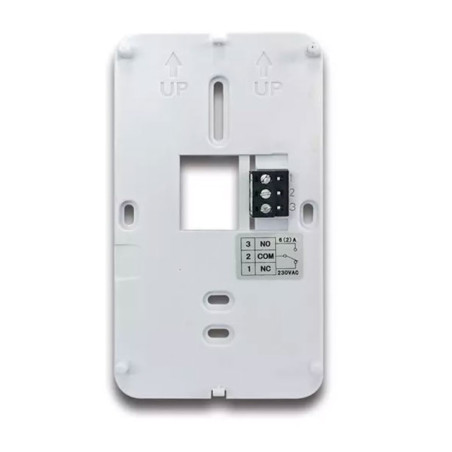

• Resistive load: max 6 A / 230 VAC

• Inductive load: max 2 A / 230 VAC

• Display backlight: white

• Low battery warning: yes

• Standby consumption: < 50 µA

• Power consumption with backlight: < 6 mA

• Color: white

• Dimensions: 130 × 86 × 35 mm

• Weight: 192 g (with batteries)
