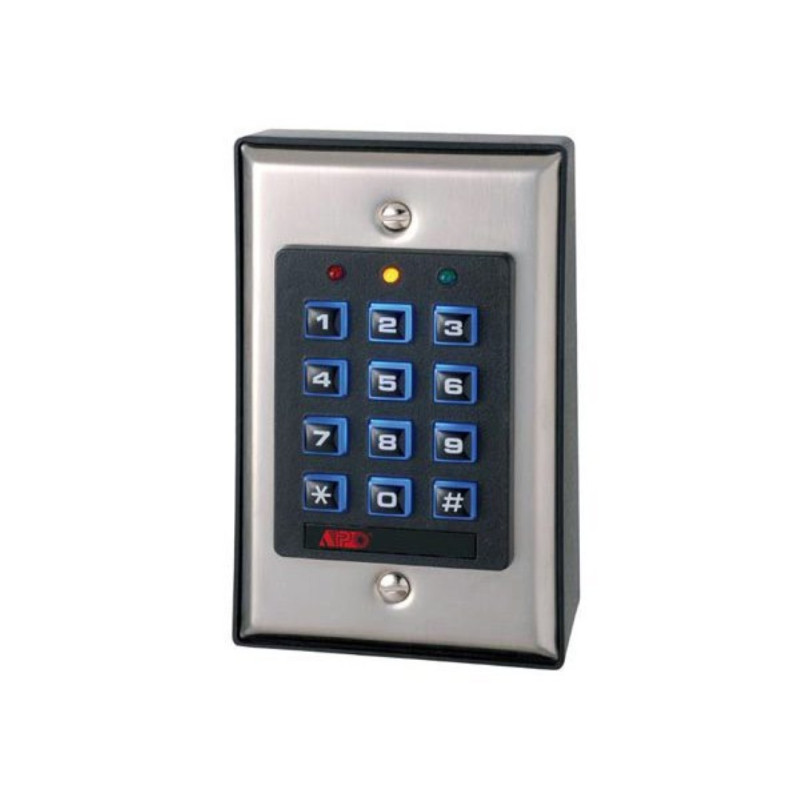

Access Control Keypad with 4 Outputs and Tamper Contact – Indoor Use

Backlit keypad system, designed for indoor security applications. Includes two relay outputs, two open collector outputs, Duress function and tamper contact.

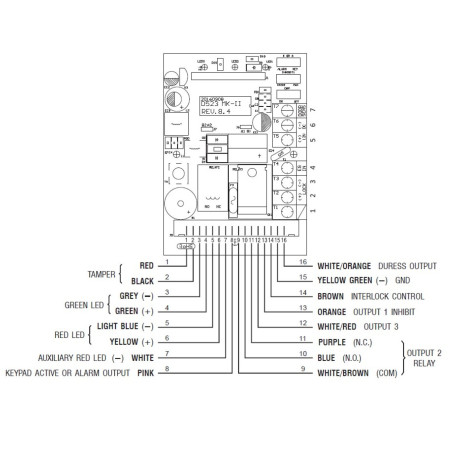

Available releases

• Output 1: Solid state relay 3A / 12V DC – ideal for electric locks
• Output 2: Mechanical relay 1 A / 24 V DC with clean NC and NO contacts – for alarm systems or automations
• Output 3: Open collector with NPN transistor – 100 mA / 24 V DC
• Duress: Open collector output with NPN transistor – switching to GND (–) with Duress code inserted, 100 mA / 25 V DC

Functions and features

• Integrated tamper contact for sabotage protection
• 3 status LEDs for visual operational indications
• Available codes: User 1 and 2, Super User, Master, Duress, Quick Code
• Over 111 million possible combinations
• Customizable User Code 1 to activate forced exit (Duress)
• Non-volatile EEPROM memory : retains settings in the absence of power
• Installation exclusively in indoor environments
• User manual included (in Italian and English, others on request)

Technical data

• Power supply: 12V DC
• Dimensions: 117 × 72 × 42 mm
• Operating temperature: –20 °C to +70 °C
• Weight: 180 g

Compact, reliable and versatile keypad, ideal for electricians and installers who want to safely and professionally manage access to doors, gates and alarm systems.
