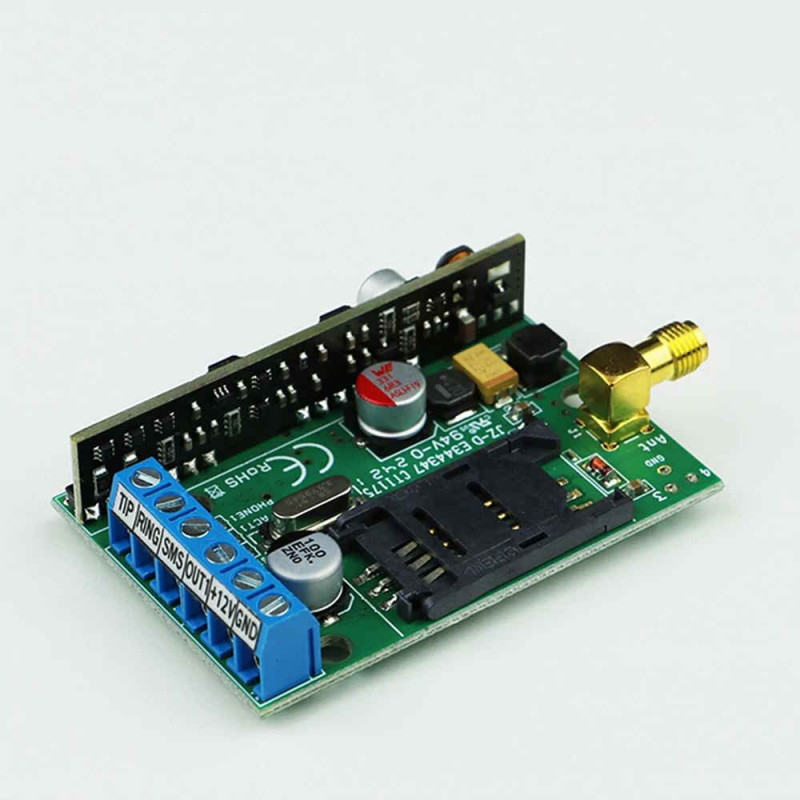

EasyLine GSM PSTN telephone line simulator for alarm control panels combiners

EasyLine GSM - 48/72 V line simulator with 1 input and 1 output

Telephone line simulator, PSTN, 6 x 4 cm

EasyLine GSM provides a full line (48V) to the control panel via TIP / RING connection, through which the control panel can signal the monitoring station to the receiver via a voice call or even send the control panel's voice message to the end user. Thanks to the OC output, we can control the output with the phone numbers saved on the SIM card, with which we can arm or even disarm the control panel. Suitable for replacing a fixed telephone line, even in call centers or elevator calls.

• TIP / RING connection to PSTN line simulation
• 1 SMS contact input
• 1 OC output
• Send SMS
• Contact ID, protocol 4/2
• Programming via SMS or telephone (DTMF)
• Controlling output via numbers saved on the SIM card

The EasyLine GSM simulates the analog telephone line (PSTN) and transmits voice messages from the alarm center to the surveillance receiver via the GSM network.

Plug & Play: The GSM device can be used without programming.

By default the input is normally closed (NC): send a notification to a predefined phone number if there is a break.

Programming is possible via SMS commands from any number using the security code.

It is equipped with an OC output, which can be controlled by free call with caller identification with user's 250/500 phone number depending on the SIM card type

Fields of application:

• The EasyLine GSM simulates the analog telephone line (PSTN) and transmits voice messages from the alarm center to the surveillance receiver via the GSM network.
• Plug & Play: The GSM device can be used without programming.
• By default the input is normally closed (NC): send a notification to a predefined phone number if there is a break.
• Programming is possible via SMS commands from any number using the security code. It is equipped with an Open Collector output, which can be controlled via free call with caller identification with 250/500 user phone number depending on the type of SIM card.
