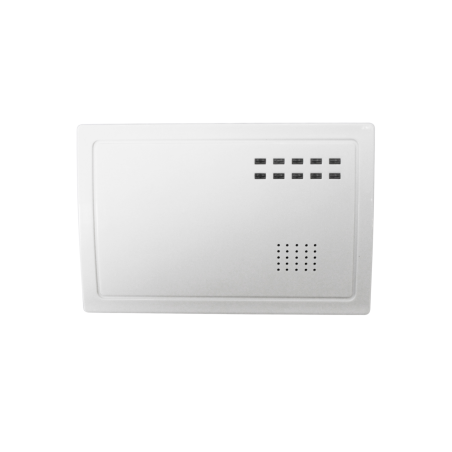

868 MHz wireless to wire converter for wireless sensors on wired burglar alarm systems

MANUAL

Device capable of converting the alarm signal from up to 8 zones with up to 1 sensor into 8 alarm signals for burglar alarm systems and NC wired alarms. Each channel has its own NC output (normally closed on a dry contact with a solid-state relay) and its own zone indication via 8 LEDs on the device body.

It features self-learning code and 9 - 12V DC power supply.

Compatible with all 868 MHz wireless sensors compatible with the DEFENDER control unit, for more information please contact us.

It allows you to convert any existing wired burglar alarm or alarm system into a wireless control unit with self-powered sensors.

The 8-channel module in question makes it possible to integrate radio devices with burglar alarm systems from well-known manufacturers such as Paradox, DSC, C&K, ADEMCO, and many more.

This device is very useful for extending wireless systems of suitable frequency, and integrating them into conventional burglar alarm systems.

This solution will allow you to expand and implement even old or out-of-production alarm systems.

The board is equipped with 8 normally closed (NC) relays. An additional relay allows for resetting and disarming with various types of external switches and actuators.

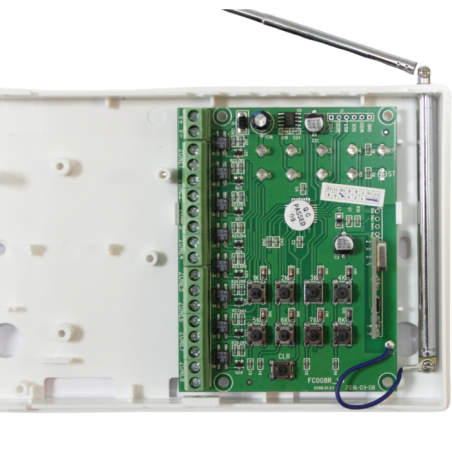

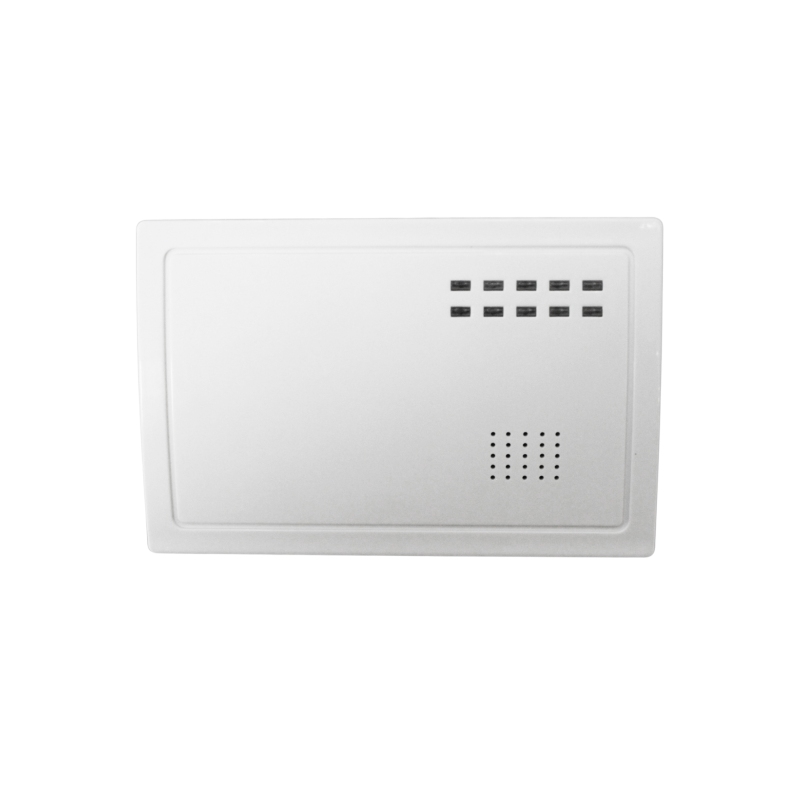

The circuit features 8 LEDs to indicate the wireless sensors connected to it, and they will also indicate the correct acquisition of the sensor during the programming phase.

Learning is very simple with the push of a button.

SPECIFICATIONS

• Operating voltage: DC 9-12 Volts

• Standby current: less than 20mA

• Current in alarm status: about 50mA

• Operating frequency: 868MHz

• Normal use temperature: 0-55°C

• Storage temperature: -20-60°C

• Supports 8 independent compatible wireless zones

• Each zone or channel can support 1 sensor

• 8 NC outputs (open circuit if sensor associated with alarm)

• Self-learning code via 8 buttons with the possibility of deletion

• 8 LEDs indicating alarm activation for individual zones

• Dry contact solid state relay outputs NC

• Warning buzzer

• Dimensions: 33*165*110 mm

• Weight: 215 Gr
