868 MHz Defender Wireless Battery Operated Anti-Theft Door Window Magnetic Sensor

MANUAL

868 MHz Defender wireless battery-powered anti-theft door/window magnetic sensor with surface mounts included.

The sensor has a special operating mode that allows the conversion of any wired anti-theft sensor into a wireless one to communicate with the control unit wirelessly.

Programming via selectors and LEDs.

Powered by long-life lithium battery.

• Compatible as additional sensors with our DEFENDER burglar alarm control units found on EBAY | MECTRONICA STORE

• Compatible with all existing or new wired burglar alarm systems thanks to the separately sold wireless-to-wired conversion control unit that supports the conversion of up to 8 sensors per control unit. The wireless-to-wire conversion control unit can be purchased separately on EBAY | MECTRONICA STORE

SPECIFICATIONS:

• Operating frequency 868 MHz

• Magnetic sensor on both sides with active side selection

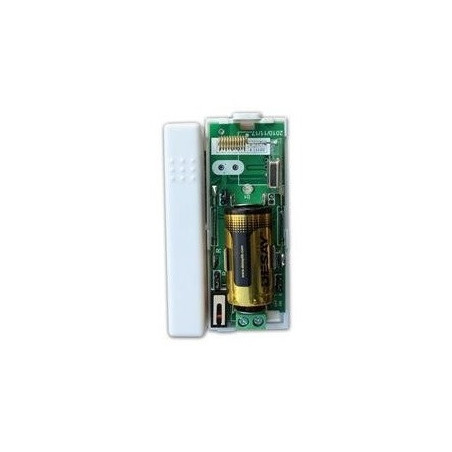

• Battery supplied (lithium mod. CR123A 3V long life)

• Battery life approximately 20 months

• Low battery warning

• Internal antenna

• Anti-tamper

• Long distance between sensor and control unit

• Wireless transmitter switchable mode, converts a wired sensor wirelessly

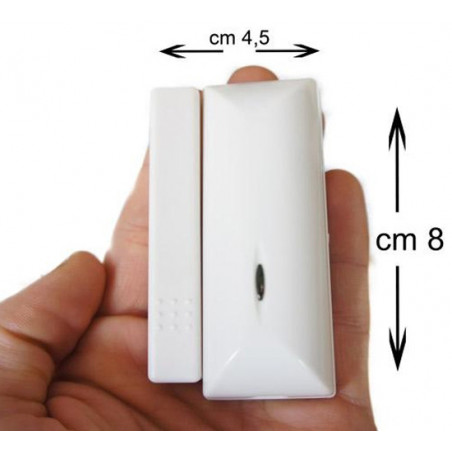

• Dimensions 40x90x30 (excluding door sensor)

• Compatible with the Defender anti-theft device found in our store (see above)

• Can be used with wired systems via a special control unit that can be purchased separately and is suitable for wired systems with up to 8 wireless sensors (see above)

• Weight: 41 gr.
