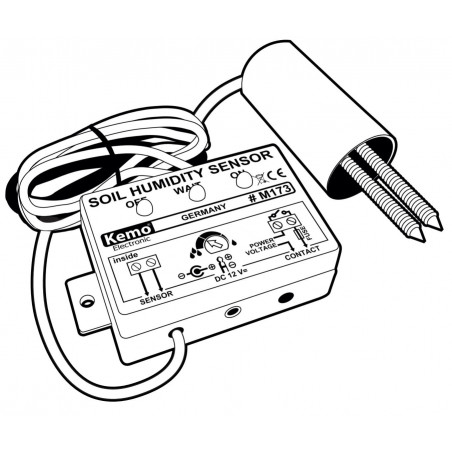

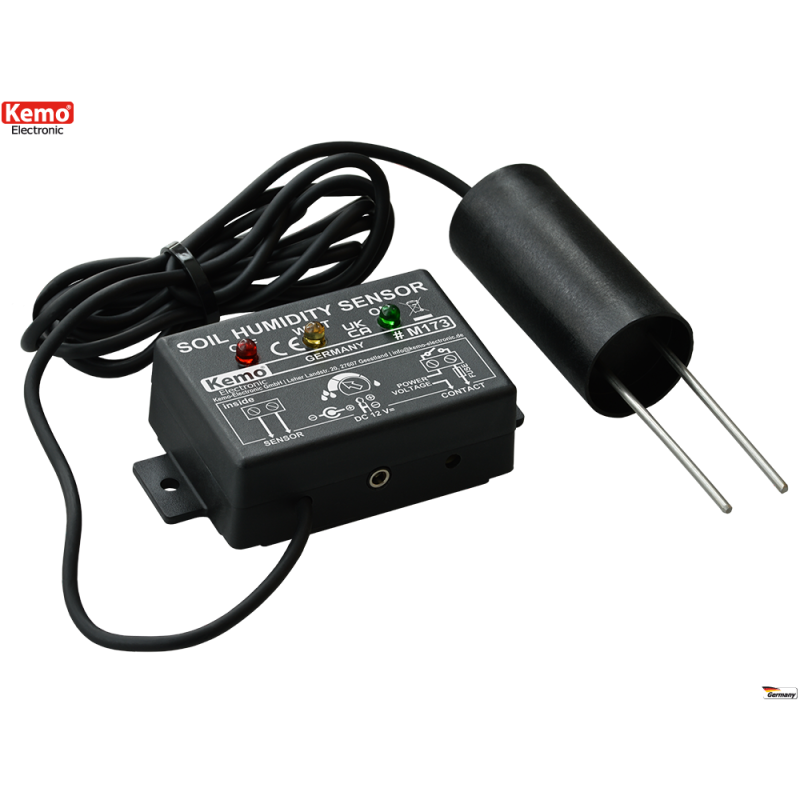

Kemo M173 12V DC Soil Moisture Sensor for Automatic Garden Irrigation
€29.25
Tax included
Kemo M173 12V DC soil moisture sensor. Detects soil moisture and provides a control signal for automatic irrigation systems, pumps, or controllers. Ideal for gardens, greenhouses, and vegetable gardens.
Secure Payments
Pay safely with Credit Card, PayPal, Amazon Pay or Bank Transfer
Fast Shipping
We ship across Europe and worldwide with UPS, DHL and DPD
30-Day Easy Return
You have 30 days from delivery to return the product if you're not satisfied
The Kemo M173 is a soil moisture sensor designed to monitor soil water levels and enable intelligent irrigation management. The device operates on a 12V DC power supply and is designed for integration into automatic irrigation or environmental control systems.
The sensor detects soil conductivity, which varies with moisture content. Based on this value, the module provides an output signal that can be used to activate or deactivate pumps, solenoid valves, relays, or control units, avoiding unnecessary irrigation and reducing water waste.
It's ideal for gardens, vegetable gardens, greenhouses, pots, flower beds, and agricultural installations , where maintaining optimal soil moisture is important. The system allows for fully automated irrigation based on actual soil needs, improving plant health.
Thanks to its simple design and compact size, the M173 is easy to install and integrate into existing systems. Once installed, it operates continuously and reliably, providing precise soil moisture control.
Main features
Soil moisture sensor for automatic systems
Power supply: 12 V DC
Detection of soil moisture level
Control output for relays, pumps or solenoid valves
Reduces water waste and unnecessary irrigation
Ideal for gardens, greenhouses, vegetable gardens and agriculture
Compact size and easy installation
Suitable for automatic and DIY systems
Typical applications

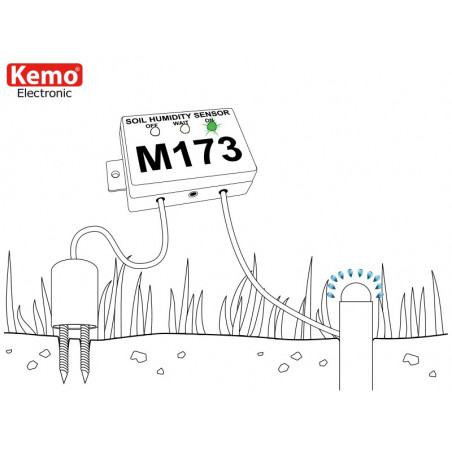

Automatic irrigation of gardens and flowerbeds
Humidity control in greenhouses and vegetable gardens
Agricultural and hobby automation
Smart irrigation systems
Water management for plants and crops
Technical data
- Operating voltage 12 V/DC stabilized > 130 mA, 3.5 mm jack connector
- 3 LED display: "On" ... "Off" ... "Pause"

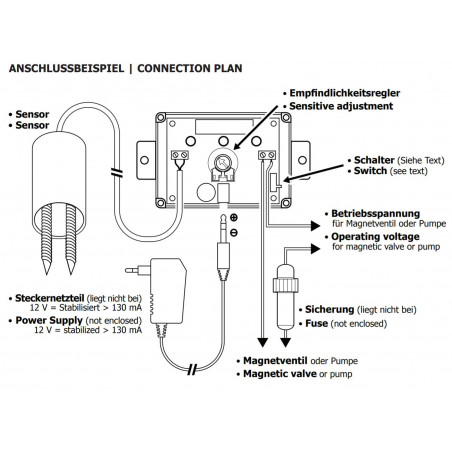

- Switching contact Potential-free relay contact 1 x On max. 3 A (up to 25 V or also 230 V/AC, see description)
- Screw terminal connections
- Switch-on delays approx. 18 - 30 minutes each
- Continuously adjustable switching threshold
- The base device must be mounted in a dry place.

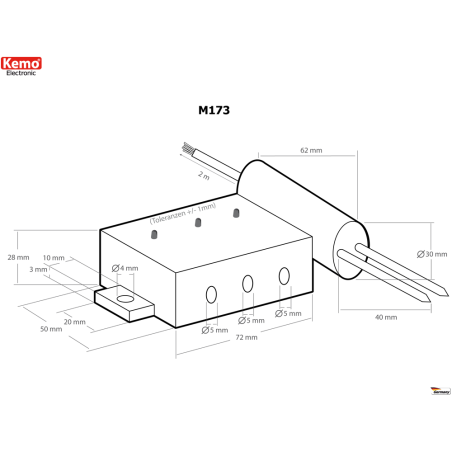

- Soil moisture sensor dimensions: diameter approx. 30 x 64 mm plus 2 galvanized metal pins approx. 4 x 40 mm
- Dimensions of the basic device approx. 72 x 50 x 28 mm (without fastening straps)
M173
4024028031736
3 Items
Data sheet
- Guy
- Template
Reviews (3) - Review moderation
sensore umidità terreno
un po complicato settare il sistema ma per il resto l'articolo è senza infamia e senza lode. Il servizio, la puntualità e la cortesia del rivenditore è encomiabile
By francesco c. the 2023-03-30
Conosco bene il prodotto, ne
Conosco bene il prodotto, ne ho già acquistati 3 in precedenza. Prodotto all'altezza delle aspettative. Grazie
By Gino C. the 2017-07-16
Osservazioni ecc. ecc.
Servizio ottimo per la puntualità e la consegna. Ma il sensore, molto efficiente, dopo meno di un giorno di funzionamento con alimentazione ininterrotta, si è guastato!. Purtroppo ho tentato di smontarlo e l'ho praticamente distrutto! Per fortuna ne avevo comprato due. Il secondo funziona bene ma lo alimento solo per tempi brevi.
By BARTOLOMEO C. the 2017-05-05
