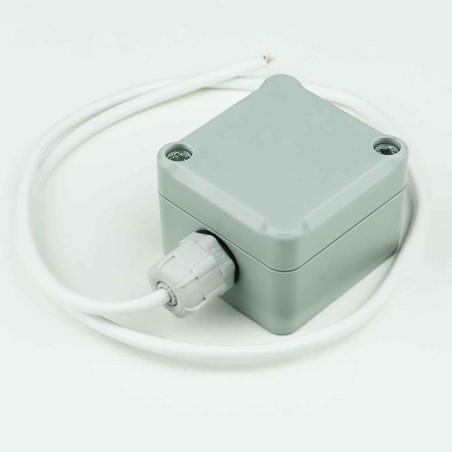

Wifi Bluetooth Controller 1 Relay Output WiFi Remote Control with APP

ASG Global has  designed the Wifi / Bluetooth controller to control electric gates, garages and barriers. However, the device can also be used to control other devices that have an input that allows control or simply via the power source of a particular device (an external relay may be required)

Gate control and remote control via WIFI and Bluetooth

·         It has no cost for use: operation without SI card

·         1 NO relay output that can be managed via WiFi or Bluetooth network

·         Unique control time adjustment between 1-240 seconds

·         Unlimited internet users

·         15 Bluetooh users

·         Application is free

·         Device status query via Bluetooth or Internet

·         Password protection to avoid unwanted checks

USEFUL LINKS MANUALS

The WiFi module parameters can be configured with WiFi / BT Manager in a few steps.

The software creates an icon on the display of our smartphone. By tapping this icon we can check the output without opening an application.

We can create two types of control icons. We determine the type of control icon when configuring settings. The type of icon can be used via Bluetooth, as well as via Wifi.

We can manage multiple Wifi / Bluetooth controllers with one smartphone

The relay output control time can be 1-240 seconds (bistable control will be available soon).

The data for connecting to the Internet can be provided in the smartphone app. In any case, the PC is not required to configure the module. We can protect the control icon with a password. Therefore, the activation of the output can only be performed after providing the password (thanks to this function, we can protect the control from unauthorized access or by accidentally touching the icon). Also, the software allows us to request a confirmation instead of a password. So, we need to double tap the icon to send the control command to the form.

After a correct configuration, the module can be managed both via Bluetooth and Wifi. It is not necessary to set each user's configuration channel. The control icon determines the communication channel.

The Bluetooth 4 protocol allows connection to the module in a distance of 15-20. Wifi guarantees unlimited distance. (to be able to control the output, you need Internet access on your smartphone which can be mobile Internet or Wifi)

As a security feature, the device allows control only if the smartphone and the controller are connected on the same Wi-Fi network

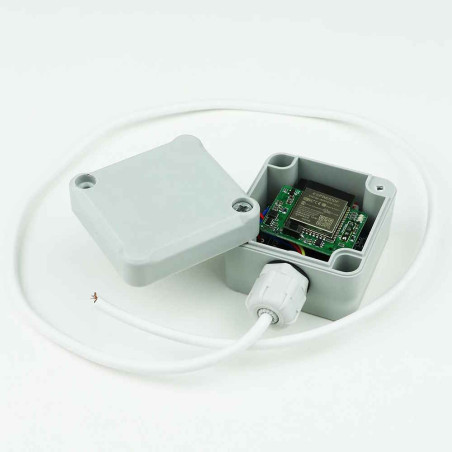

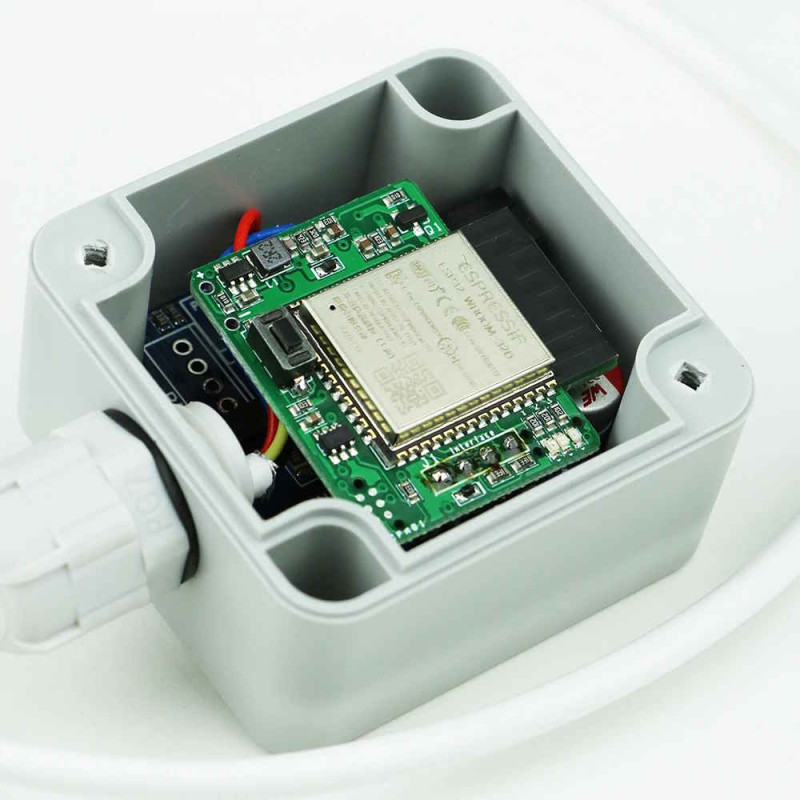

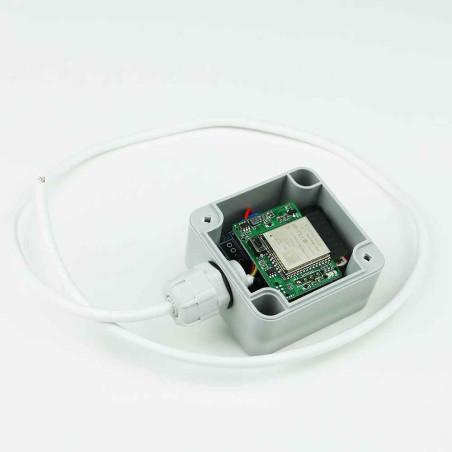

For security reasons, the module is visible for 10 minutes as a Bluetooth device after reboot or startup. We can make the module visible by pushing down the microswitch on top of it or on the web interface.

The form provides feedback in a push message and information about checking and connecting, etc.

The Wifi / Bluetooth controller is also available on a web server. After logging into the website, you can reach the following functions:

·         setting and changing the output control time

·         creation and deletion of new users, disabling of control permissions

·         query Wifi network signal statistics showing network availability

·         disable the control permissions of certain users

·         in the event log we can see when and which customer triggered the output

·         we can query the output counter which gives information on how many times the output has been checked

·         we can query the hours of operation of the module

·         we can create a control link which allows us to control the module output with the PC

·         In the statistics we can see how many times the module has been launched or restarted, the number of push messages, connections to the server etc.

·         we can activate the Bluetooth visibility to be able to create a new Bluetooth connection with a new phone

·         disabling the wifi network

Areas of application:

·         Control: opening of the door, barrier and garage

·         Home automation (air conditioning, heating, sauna, lighting, etc.)

·         Door opening, access control

·         Management permissions

·         Alarm panel: Arm / Disarm functions

FEATURES

·         Entrances:              0

·         Relay output:         1

·         Maximum charge output relay:        max. 30V @ 500mA

·         Power (maximum):     200 mA @ 12 VDC

·         Power (standby):         70 mA @ 12 VDC

·         Voltage:           9-35 VDC, 24 VAC

·         Transmission channel:              Wifi / Bluetooth

·         Programming method:     Wifi / Bluetooth

·         User numbers for output control (wifi / Bluetooth): Unlimited / 15

SPECIFICATIONS

·         Diet  9-35 VDC, 24 VAC

·         Standby consumption           70 mA

·         Maximum consumption         200 mA

·         Relay output          max. 30V @ 500mA

·         Dimensions         50 x 70 x 37 mm

·         Operating temperature             -20 ° C - + 70 ° C
