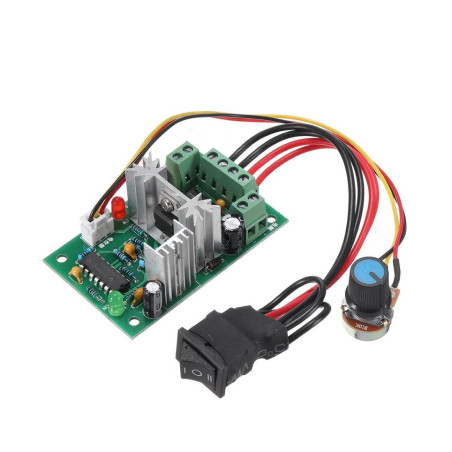

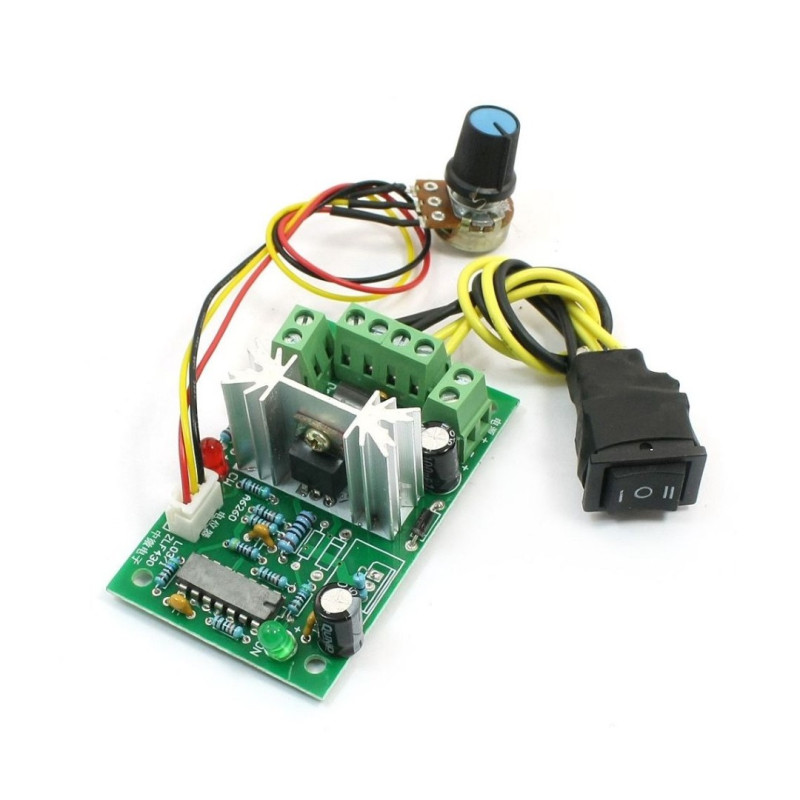

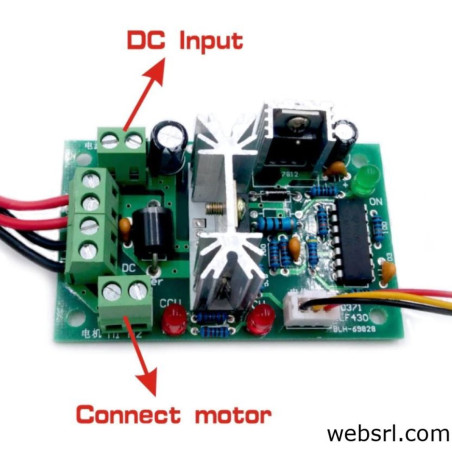

DC Motor Speed Controller 10-40V 5A PWM with CW CCW Reversing 150W CCM2

The CCM2 DC motor speed controller is a compact and efficient module designed to control the speed and direction of rotation of DC motors.

Thanks to PWM (Pulse Width Modulation) technology, it allows for smooth and precise speed regulation, maintaining high energy efficiency and reducing power losses.

The device supports a wide input voltage range from 10V to 40V DC , making it compatible with various systems, including 12V, 24V and 36V power supplies.

It features a CW/CCW rotation switch that allows you to easily change the direction of the motor, making it ideal for applications such as robotics, automation, model making and DIY.

The regulator also integrates overload and short circuit protection , ensuring greater safety during use.

Main features

• Speed controller for DC motors
• Control via PWM technology
• Wide voltage range: 10–40V DC
• Maximum power: 150W
• Continuous current up to 5A
• CW/CCW rotation reversal switch
• Overload and short circuit protection
• Speed regulation from 0% to 100%
• Compact design and easy installation

Technical specifications

• Model: CCM2
• Input voltage: 10 ÷ 40 V DC
• Supported voltages: 12V / 24V / 36V
• Maximum power: 150 W
• Continuous current: max 5 A
• Protection current: 8 A
• Maximum short circuit time: 30 seconds
• Modulation: PWM
• PWM Range: 0% ÷ 100%
• Direction: CW / CCW
• Resistance: 10K
• Dimensions: 74 × 46 × 27 mm
• Hole spacing: 63.5 × 36.5 mm
• Hole diameter: 3.5 mm
• Cable length: approx. 14–20 cm

Typical applications

• DC motor control
• Robotics and automation
• Model making
• DIY projects
• Ventilation systems and pumps
• Electric motor speed regulation
