KIT Shield I2C Expansion IO 8 IN + 8 OUT Relay for Raspberry PI
$56.39
Tax included
Expansion shield for Raspberry Pi based on the MCP23017 integrated circuit which provides eight digital inputs and eight digital outputs with relative status LEDs.
Secure payments
You can pay safely by Card, PayPal, Amazon Pay or Bank Transfer
Delivery policy
Express shipments with DHL, BRT, GLS
Return policy
You have 15 days from delivery to return the product if you are not satisfied

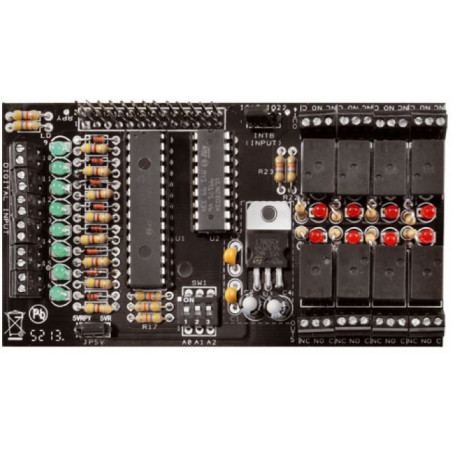

Attention, the product is a KIT and therefore you will be given the components to be soldered with an electronics soldering iron and everything needed to recreate the device as shown in the image. The KIT includes easy-to-understand illustrated instructions in English.
Experience level required for assembly: MEDIUM
Expansion shield for Raspberry Pi based on the MCP23017 integrated circuit that provides eight digital inputs and eight digital outputs with relative status LEDs. Each of the eight outputs drives a relay to which external loads can be connected. The I2C bus is used to access the shield's inputs/outputs. The shield's address can be configured using a three-position DIP switch, so as to allow the connection and management of up to eight shields simultaneously, each with a different address; this allows the system to be expanded up to a total of 64 inputs and 64 outputs that can be driven individually. It uses Wiring-PI2, an Open Source library licensed under the GNU LGPLv3 license that can be used in Python, which allows you to access the individual inputs and drive them in a very simple way.
Discover all the Raspberry PI and related accessories (displays, interfaces, camera modules, kits, power supplies...) available in our shop on EBAY | MECTRONICA STORE
Documentation and useful links
FT1093K
1 Item
Data sheet
- Guy
- Template
