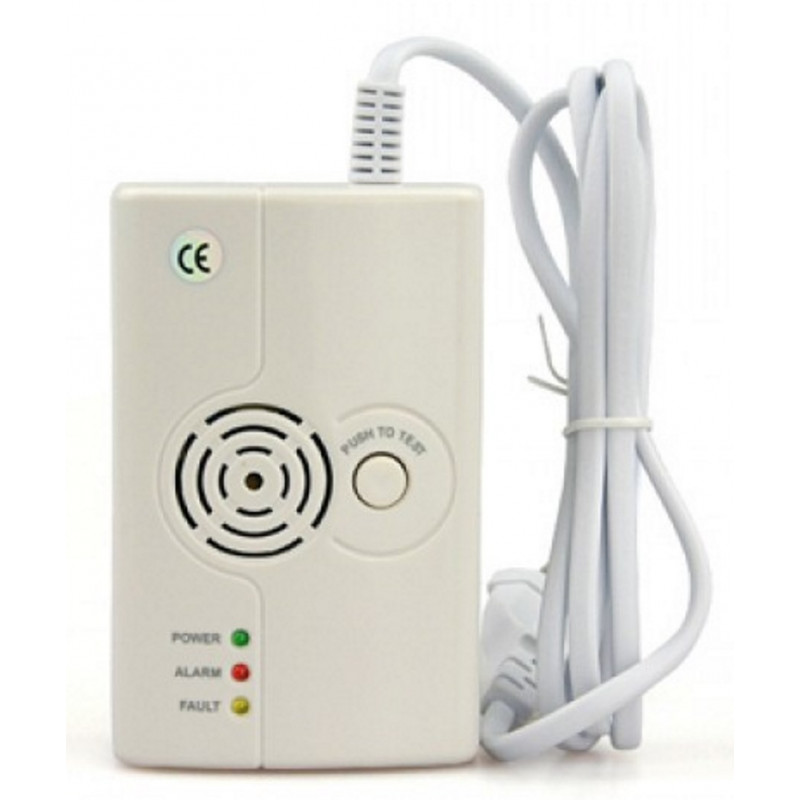

Methane and LPG gas leak detector with 75db siren

Wireless detector capable of signaling the presence of methane and LPG gas leaks via the integrated siren and with integrated Wireless TX that can be combined with a compatible FR575 wireless burglar alarm control unit. It has an audible alarm with 75dB of power (at a distance of 1 meter), 3 signaling LEDs (power, alarm, malfunction), test button and automatic reset. When the gas limit in the room exceeds the alarm threshold, calibrated at the level of 6% LEL (Lower Explosive Limit), an acoustic signal with 75dB of power (at a distance of 1 meter) and a light signal is emitted, at the same time the internal 433 MHz transmitter sends a coded signal to the wireless control unit, triggering the alarm. Power supply: 220 Vac, wall installation.

This device, in addition to having the alarm signal via integrated siren, can be combined with compatible alarm control units to signal the alarm even remotely. You can purchase the alarm control unit compatible with the sensor on EBAY | MECTRONICA STORE

Technical specifications

• Power supply: 220 Vac

• Transmitter frequency: 433 MHz

• Alarm level: 6% LEL (lower explosive limit)

• Error: approximately 3% LEL (lower explosive limit)

• Sound alarm: 75dB at 1 meter

• Visual indicators: Power LED, Alarm LED and Malfunction LED

• Alarm Reset: Automatically resets when the gas percentage returns below the alarm level

• Working temperature : -10°C to + 55°C

• Storage temperature: -25°C to +55°C

• Dimensions (mm): 110x70x40

• Weight: 270 grams
