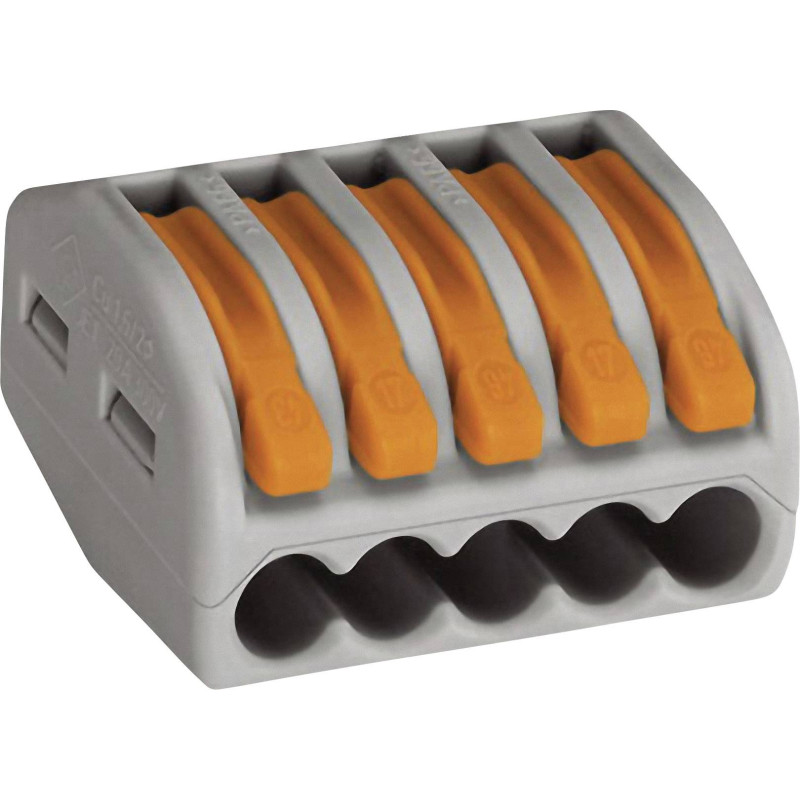

WAGO 222-415-40 Flexible clamp: 0.08-4 mm² rig: 0.08-2.5 mm² Poles: 5 40 pcs
search
  • WAGO 222-415-40 Flexible clamp: 0.08-4 mm² rig: 0.08-2.5 mm² Poles: 5 40 pcs

WAGO 222-415-40 Flexible clamp: 0.08-4 mm² rig: 0.08-2.5 mm² Poles: 5 40 pcs

€32.50
Tax included

The simplest way to connect and separate wires and cables. Simply open the orange lever until it clicks, insert the wires and return the lever to position (flush with the terminal housing).

Quantity
Last items in stock

  Secure payments

You can pay safely by Card, PayPal, Amazon Pay or Bank Transfer

  Delivery policy

Express shipments with DHL, BRT, GLS

  Return policy

You have 15 days from delivery to return the product if you are not satisfied

The simplest way to connect and separate wires and cables. Simply open the orange lever until it clicks, insert the wires and return the lever to position (flush with the terminal housing).

Strengths and details

·         Tool-free operation

·         Content: 40 pcs.

Specifications

·         Rated current         32 A

·         Rated current         32 A

·         Content         40 pcs.

·         Manufacturer Part Number         222-415-40

·         Color  Gray, Orange

·         Terminal features              with finger press

·         Connection   Spring loaded

·         Clamps Series   222

·         Rated voltage 400 V / AC

·         Flexible section (max.)              4 mm²

·         Flexible section (min.) 0.08 mm²

·         Rigid section (max.)     2.5 mm²

·         Rigid section (min.)      0.08 mm²

·         Poly        5

·         Stripping length 9 - 10 mm

·         Product type   Clamp

222-415-40
4044918464956
