ANTI-SCALE ELECTRONIC MAGNETIC DECALCIFIER 12V DC PIPES

| ITALIAN MANUAL | EXAMPLE OF APPLICATION AND DETAILS | TEST LABORATORY OPERATION

This device allows you to efi solve the problem of limescale formation in the water pipes which can lead to damage to household appliances and taps when in contact with the water in your water supply. Usually the limescale problem is solved with the use of chemical components which, however, can be polluting and require continuous purchase and use.

With the electronic anti-limestone, on the other hand, you can eliminate the problem of limescale forever using a device that does not pollute and has a reduced power consumption (max 2W).

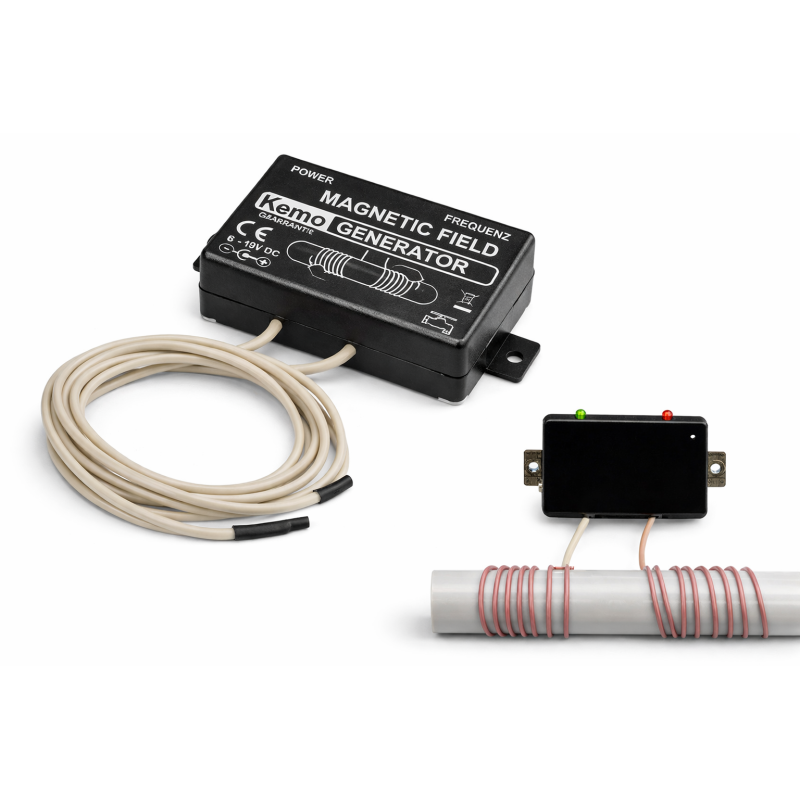

The installation is very simple and takes place directly on the pipe, possibly in the central pipe immediately after the meter to protect all domestic devices, by winding the two supplied wires in the opposite way on the pipe as indicated in the manual, then connect the device to a power supply 6 to 16V DC and the device is already able to operate.

During operation, the device generates an electromagnetic field on the tube (where the winding is made) at low intensity on an impulsive frequency of about 2000 Hz, at this frequency the lime molecules are placed in an ionized crystalline form with which it is more difficult the bond from which the limestone is then born, allowing to obtain a water that is absolutely not modified in terms of mineral salts, important for health, or of chemical content but which is much more friendly to household appliances and devices in contact with water in bathrooms as the bond that leads to limestone has very little effect.

POWER SUPPLY NOT INCLUDED! Version with power supply available in our shop on EBAY | MECTRONICA STORE

Do you need the power supply? You can find it in our shop on EBAY | MECTRONICA STORE

SPECIFICATIONS

• Operating voltage 6 ... 16V DC power supply on 3.5mm jack female connector (central positive)

• Absorption

• Absorbed power less than 2W

• Operating frequency

• For copper, plastic, steel pipes with a diameter from 8 to 80mm

• Maximum flow rate 5m ³ / h

• Cables to be arranged in a coil in the opposite direction

• Dimensions approximately 72x50x28mm

• Support for screw mounting or cable ties

• Operation signaling LED
