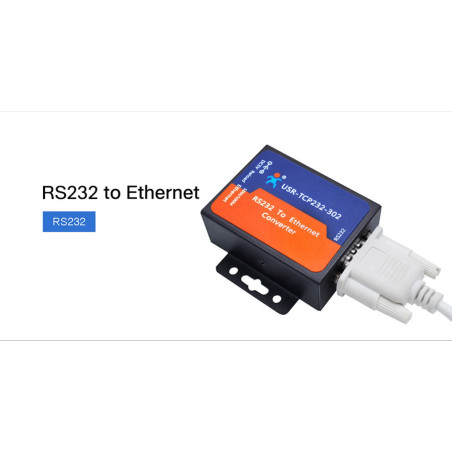

RS232 SERIAL ETHERNET LAN CONVERTER COM TCP EMULATOR USR-TCP232-302

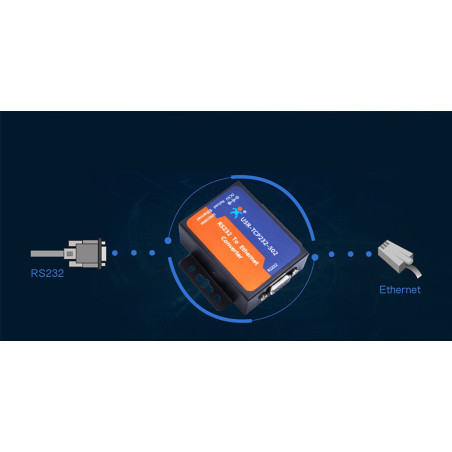

1 Port RS232 to Ethernet Converter USR-TCP232-302 can transmit data transparently between TCP / IP and RS232. USR-TCP232-302 RS232 to IP converters are widely in demand in industrial automation. Simple setup and easy to use. Single RS232 to Ethernet converters
You can pay safely by Card, PayPal, Amazon Pay or Bank Transfer
Express shipments with DHL, BRT, GLS
You have 15 days from delivery to return the product if you are not satisfied
1 Port RS232 to Ethernet Converter USR-TCP232-302 can transmit data transparently between TCP / IP and RS232. USR-TCP232-302 RS232 to IP converters are widely in demand in industrial automation. Simple setup and easy to use. Single RS232 to Ethernet converters
· Cheap
· RS232 port
· Power supply: DC 4.75-7V
· Compact, lightweight
· Support TCP server / client, UDP server / client
· Virtual COM
USEFUL LINKS MANUAL | SOFTWARE | DOCUMENTATION
Mode of work

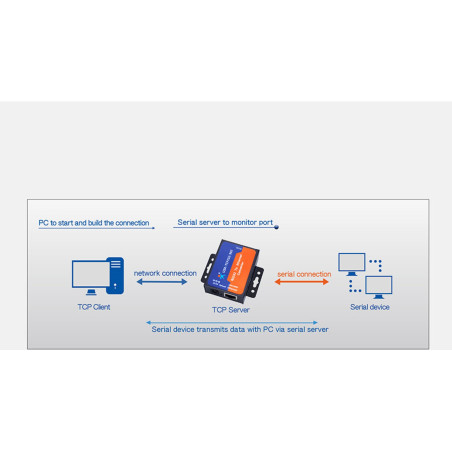

· TCP server
USR-TCP232-302 RS232 to Ethernet converters monitor the set port and wait for a TCP client connection. The data from the serial device will be transmitted to all successfully connected TCP clients.

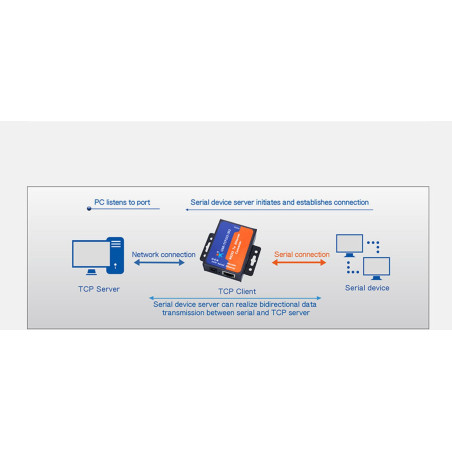

· TCP client mode
The USR-TCP232-302 RS232 to Ethernet converters will initiate the TCP connection to the destination IP address that you configured and USR-TCP232-302 will continually attempt to reconnect if a TCP connection is unsuccessful. If the USR-TCP232-302 successfully establishes the TCP connection to the TCP server, it can realize transparent bidirectional data transmission between the TCP server and the serial device.

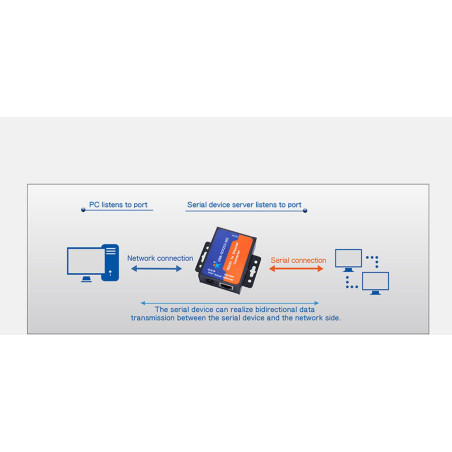

1. UDP mode
The USR-TCP232-302 RS232 to Ethernet converters will transmit the serial data from the serial device to the target network device via UDP connection. USR-TCP232-302 will listen to the port and transmit all received data to the serial device.

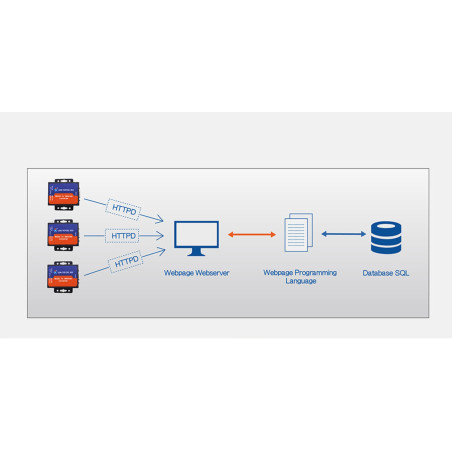

· Converters from httpsD
ClientRS232 to Ethernet USR-TCP232-302 supports https mode Client which can transmit serial data to https server in https format (GET / POST).

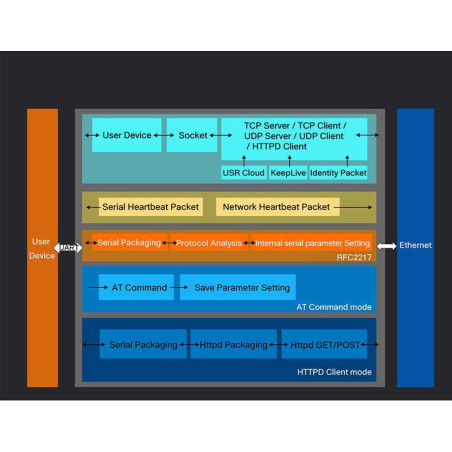

Functions
· Synchronous baud rate
Dynamically change the baud rate, data bit, control bit and stop bit of the serial device server via network command.
· Identity package function
When RS232 to Ethernet converter USR-TCP232-302 works as TCP client, it can send identity packet to TCP server which can be identification. The identity package can be IMEI code, ICCID code and user-editable identity package.
· Serial and network heartbeat package
USR-TCP232-302 RS232 to Ethernet converters maintain normal connection with server by sending heartbeat packet regularly.
Use cases

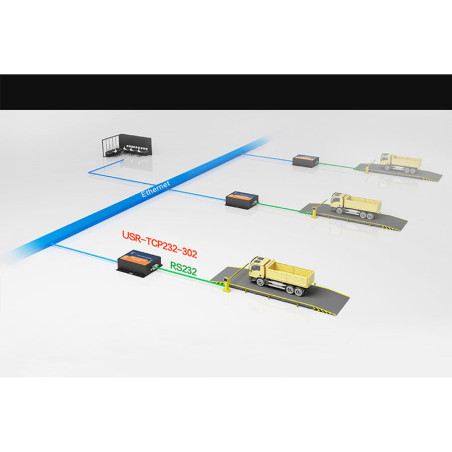

· Automatic weighing
Connect RS232 to Ethernet converters USR-TCP232-302 to the barrier gate, and can realize remote control of the barrier gate via Ethernet in the control center.

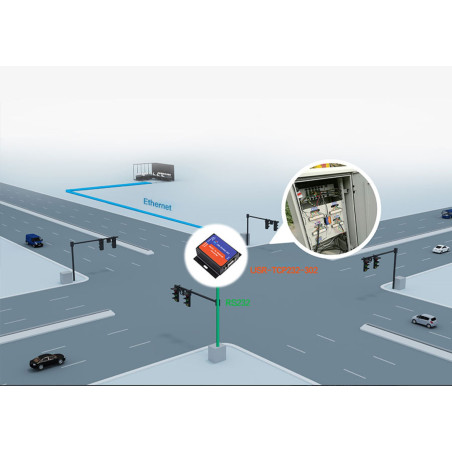

· Traffic light management system
Connect the RS232 to Ethernet converter USR-TCP232-302 and can realize traffic data acquisition and processing via Ethernet in the control center. It can also provide an accurate quantitative basis for the dispatch of traffic management and planning of urban transport It can implement the optimal control of transport phenomena such as traffic jams, traffic accidents, traffic capacities from a regional or global perspective.
SPECIFICATIONS
System Information |
|
Processor |
TI Cortex-M0 |
Ethernet |
|
Port Number |
1 |
Interface Standard |
RJ45 |
Installments |
10/100 Mbps, MDI / MDIX, auto switch between cross and direct connection |
Protection |
2KV electromagnetism isolation, shell insulation blocking |
Network Protocol |
IP 、 TCP / UDP 、 ARP 、 ICMP 、 IPV4 、 HTTP |
Buffer |
Send: 6K bytes, receive: 4K bytes |
Serial Port |
|
Port Number |
1 |
Interface Standard |

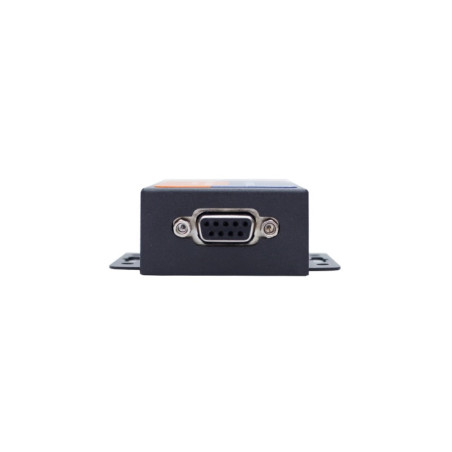

RS-232: DB9 female port |
Data Bits |
5, 6, 7, 8 |
Stop Bit |
1, 2 |
Check Bit |
None, Even, Odd, Space, Mark |
Baud Rate |
600 bps ~ 230.4 Kbps |
Flow Control |
Null |
Buffer |
Receive: 800 bytes |
Software |
|
Virtual Serial ( USR-VCOM ) |
Windows 2000 or higher (32 bit / 64 bit) |
Configuration |
Computer set-up software, serial command, built-in webpage |
Basic Parameter |
|
Size |
71 x 60 x 25 mm |
Operating Temp. |
-25 ~ 75 ° C |
Storage Temp. |
-40 ~ 105 ° C, 5 ~ 95% RH |
Input Voltage |
DC 4.75 ~ 7V |
Working Current |
150mA @ 5V |
Power |
|
Blackberries |
|
Warranty |
2 years |
Accessory |
5V1A power supply |
Certificate |
CE / FCC / RoHs |
