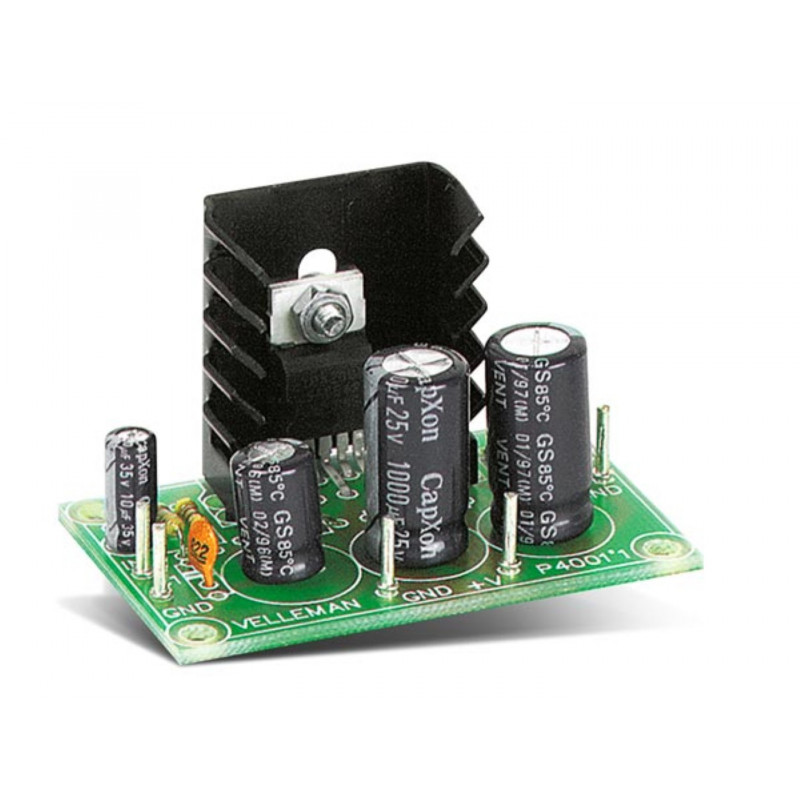

KIT Mono amplifier 7 W TDA 2003 for loudspeaker 4 - 8 Ohm 8 -18 VDC

Attention, the product is a KIT and therefore you will be given the components to be welded with an electronic soldering iron and everything you need to recreate the device as shown in the image. The KIT includes easy-to-understand illustrated instructions in English.

LEVEL ESPE experience lower middle NEEDED

Also available in assembled version (code VM114)

This small amplifier is built around the TDA 2003 integrated circuit, capable of delivering 4W rms into 4 Ohms. The integrated circuit is fully protected against overloads and short circuits. It works with a wide range of supply voltages.

USEFUL LINKS MANUAL AND DATASHEET

FEATURES

·         music output power: 7W / 4 Ohm

·         output power (RMS): 3.5W / 4 Ohm and 2W / 8 Ohm

·         Total harmonic distortion: 0.05% (1W / 1kHz)

·         Response: 20Hz to 20kHz (-3dB)

·         signal to noise ratio: 86 dB

·         input sensitivity: 40mV / 150kOhm

·         overload and short circuit protection

·         power supply: 15 VDC (8 to 18 VDC allowed) / 0.5 A

·         PCB size: 55 x 35mm
