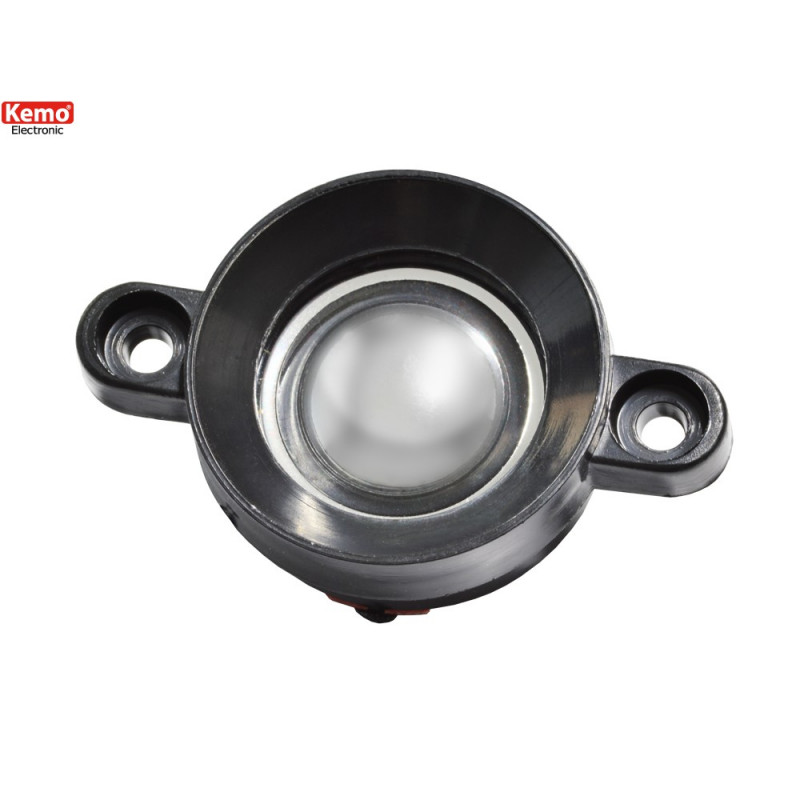

Kemo P5123 Mini Piezoelectric Tweeter 2500-45000 Hz Ø 30 mm Very High Frequency

The Kemo P5123 is a mini piezoelectric tweeter designed to provide efficient reproduction of high-frequency sounds in small spaces. With a diameter of approximately 30 mm and compact dimensions, it fits easily into devices, speakers, electronic projects, and compact audio systems.

This tweeter covers a frequency range from approximately 2,500 Hz up to 45,000 Hz , making it suitable not only for traditional audio but also for specialty applications such as beepers, alarms, ultrasonic generators, DIY projects, and space-constrained installations.

The piezoelectric construction ensures a clear and clean sound in the high frequencies, with high efficiency and minimal distortion. Thanks to its small size and robustness, it is ideal for applications requiring a discreet, lightweight, and versatile tweeter while maintaining good acoustic performance.

Main features

• Type: Compact piezoelectric tweeter

• Frequency range: approx. 2,500 – 45,000 Hz

• Size: diameter ~30mm, compact thickness

• Ideal for: audio projects, compact speakers, alarms, high-frequency generators, DIY electronics

• Efficiency: high frequencies with low distortion

• Easy installation even in confined spaces

Typical applications

• Building or repairing compact audio speakers

• Audio systems for cars, motorcycles, boats and vehicles

• DIY Projects with Microcontrollers / Audio Modules

• Sound alarms, acoustic signals, ultrasonic generators

• Installations where a small, discreet tweeter is required

Technical data

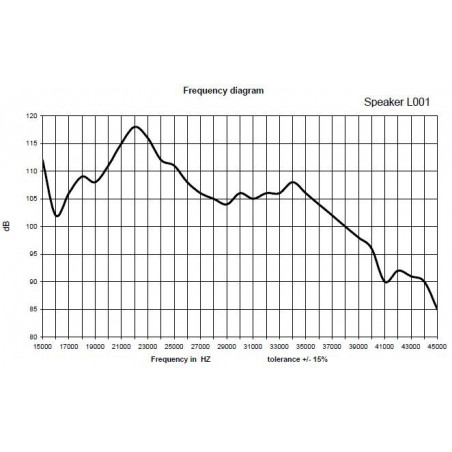

• Frequency range approx.: 2,500 - 45,000 Hz

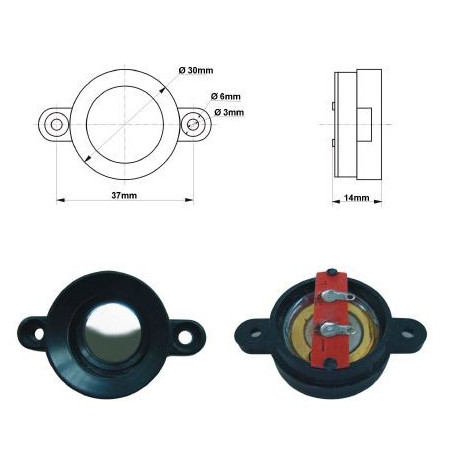

• Dimensions Ø approx. 30 x 13 mm
