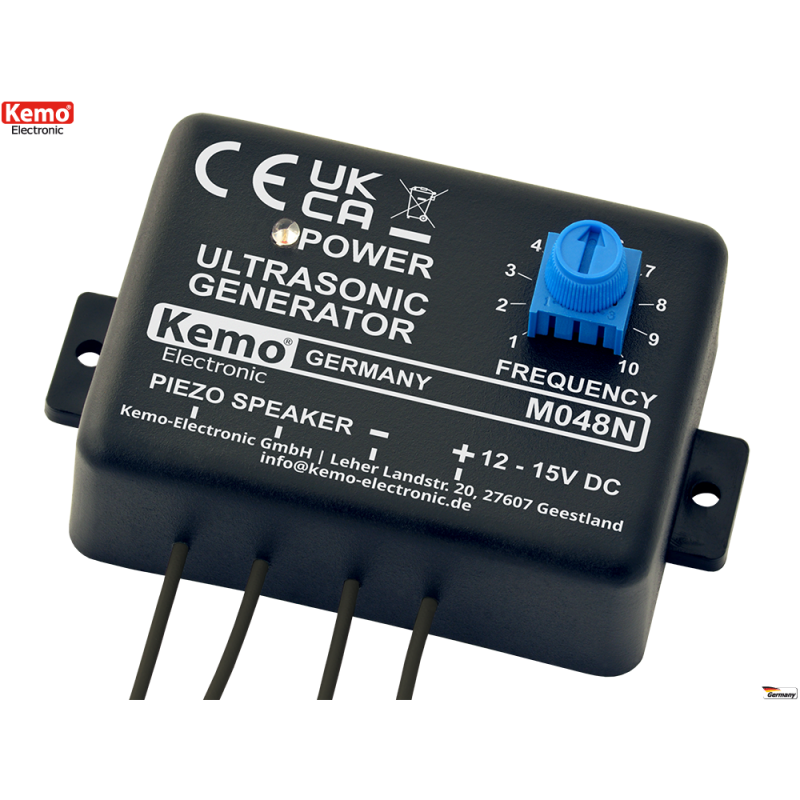

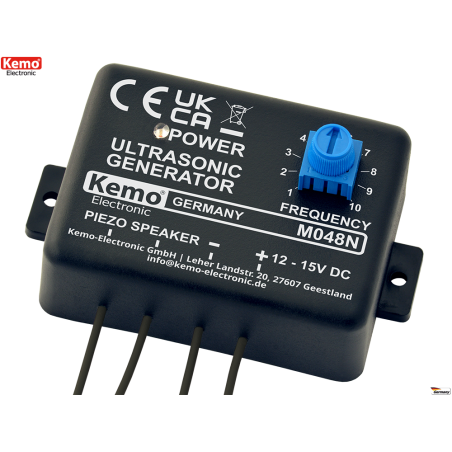

Adjustable Ultrasonic Power Generator 8 - 40KHz Power Supply 12 - 15V DC

MANUAL | DESCRIPTIVE VIDEO

Adjustable ultrasonic power generator 8 – 40KHz power supply 12 – 15V DC connectable to external piezo capsule (up to 5), not included.

Ultrasonic sounds can scare away animals and insects, such as rats, mice, martens, wild rabbits, and mosquitoes. When mounted on a car, eggs will be routed (reducing the risk of accidents). For connection to a piezoelectric speaker, the module is ideal for scaring away destructive animals from the pantry, kitchen, storage room, garden, etc. It can also be used as a dog whistle. Some bird species will be scared away by your fruit trees.

ATTENTION: Speaker not included: PIEZO capsule for ultrasound required, recommended product codes to match in our shop:

Recommended piezo-tweeter:

• L001 - Piezo-electric spherical dome tweeter with flare

• L002 - Ultrasonic wall speaker

• L003 - Piezo-tweeter approx. 8 Ohms 50mm

• P5123 - Piezoelectric mini tweeter for M094N

SPECIFICATIONS

• Operating voltage 12 - 15 V / DC

• Current consumption <50 mA

• Speaker output only for up to 5 piezo speakers!

• Adjustable audio frequency approx. 8 - 40 kHz (± 20%)

• Dimensions approx. 60 x 45 x 29 mm (without fastening straps)
