TDA 2003 7W Mono Amplifier KIT for 4-8 Ohm 8-18 VDC Speaker

€11.50
Tax included

This little amplifier is built around the TDA 2003 integrated circuit, capable of delivering 4W rms into 4 Ohms.

Quantity
Last items in stock

  Secure Payments

Pay safely with Credit Card, PayPal, Amazon Pay or Bank Transfer

  Fast Shipping

We ship across Europe and worldwide with UPS, DHL and DPD

  30-Day Easy Return

You have 30 days from delivery to return the product if you're not satisfied

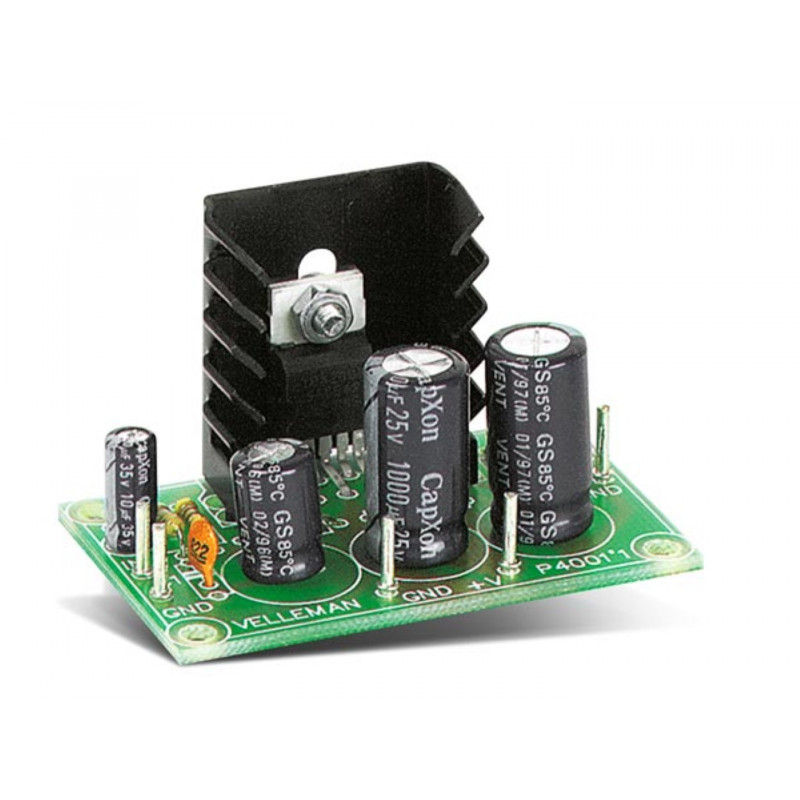

Please note: this is a KIT, so you'll receive the components you need to solder with an electronics soldering iron and everything you need to recreate the device as shown in the image. The KIT includes easy-to-understand illustrated instructions in English.

REQUIRED EXPERIENCE LEVEL: medium-low

Also available in assembled version (code VM114)

This small amplifier is built around the TDA 2003 integrated circuit, capable of delivering 4W rms into 4 ohms. The integrated circuit is fully protected against overload and short circuits. It operates over a wide range of supply voltages.

CHARACTERISTICS

·         Music output power: 7W / 4 Ohm

·         Output power (RMS): 3.5 W / 4 Ohm and 2W / 8 Ohm

·         Total harmonic distortion: 0.05% (1 W / 1 kHz)

·         response: 20 Hz to 20 kHz (-3 dB)

·         Signal to noise ratio: 86 dB

·         Input sensitivity: 40 mV / 150 kOhm

·         overload and short circuit protection

·         Power supply: 15 VDC (8 to 18 VDC allowable) / 0.5 A

·         PCB size: 55 x 35mm

WSAH4001
5410329733155
