21 Key IR Remote Control with 38kHz Infrared Receiver HX1838 VS1838 Arduino

€6.50
VAT included

Set consisting of a 21-button infrared remote control and a breakout board with a 38 kHz HX1838 or VS1838 IR receiver . The remote control uses NEC encoding and offers a range of up to 8 meters . The receiver operates on 3.3 to 5V power and is ideal for projects with Arduino , Raspberry Pi, and other microcontrollers . The remote control includes a CR2025 battery.

Quantity
Last items in stock

  Secure Payments

Pay securely with Credit Card, PayPal, Amazon Pay, Bank Transfer or PostePay

  Fast Shipping

We deliver throughout Europe and worldwide with UPS, DHL and DPD

  Easy 30-Day Returns

You have 30 days from delivery to return the product if you are not satisfied

The set includes a 21-button infrared remote control and a small breakout board with a 38kHz IR receiver HX1838 or VS1838 , a handy solution for adding remote control to electronic projects and microcontroller-based systems.

The receiver can be easily paired with Arduino , Raspberry Pi or other microcontrollers and used, for example, to control robots, lights, electronic devices and automation systems.

21-button IR remote control

The remote control has 21 keys , including a numeric keypad, directional buttons and additional function controls.

It uses NEC encoding and transmits the address bytes 0x00 and 0xBF , followed by a data code between 0 and 26 , skipping the values 3, 7, 11, 15, 19, and 23 .

The transmission distance can reach 8 meters . Actual range may vary depending on the surrounding environment, receiver sensitivity, and usage conditions.

38 kHz IR receiver

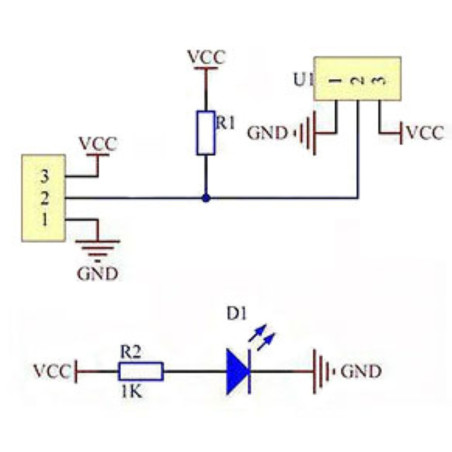

The breakout board integrates a HX1838 or VS1838 IR receiver operating at 38 kHz .

It can be powered by a voltage between 3.3 and 5V , making it suitable for integration into numerous electronic projects.

Consumption is particularly low:

  • Standby: 3~5 µA

  • Standard operation: 3~5 mA

The compact size of the breakout board makes it easy to integrate even into prototypes and small devices.

Applications

The set can be used for numerous applications, including:

  • Remote control of Arduino projects

  • Projects with Raspberry Pi

  • Robot control

  • Turning lights on and off

  • Control of electronic devices

  • Automation and prototyping

  • Infrared user interfaces

  • Experimentation with IR protocols

IR Remote Control Specifications

  • Number of buttons: 21

  • Encoding: NEC

  • Transmitted addresses: 0x00 and 0xBF

  • Data codes: 0 to 26, excluding 3, 7, 11, 15, 19, and 23

  • Transmission distance: up to 8m

  • Power supply: 1 CR2025 button battery included

  • Dimensions: 86 x 40 x 6.4 mm

  • Weight: 14 g

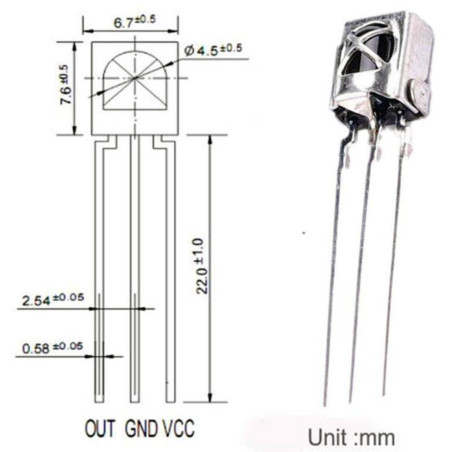

IR Receiver Breakout Board Specifications

  • Receiver: HX1838 or VS1838

  • IR Frequency: 38 kHz

  • Supply voltage: 3.3-5V

  • Standby power consumption: 3~5 µA

  • Current consumption during operation: 3~5 mA

  • Dimensions: 24 x 16 x 10 mm

  • Weight: 3 g

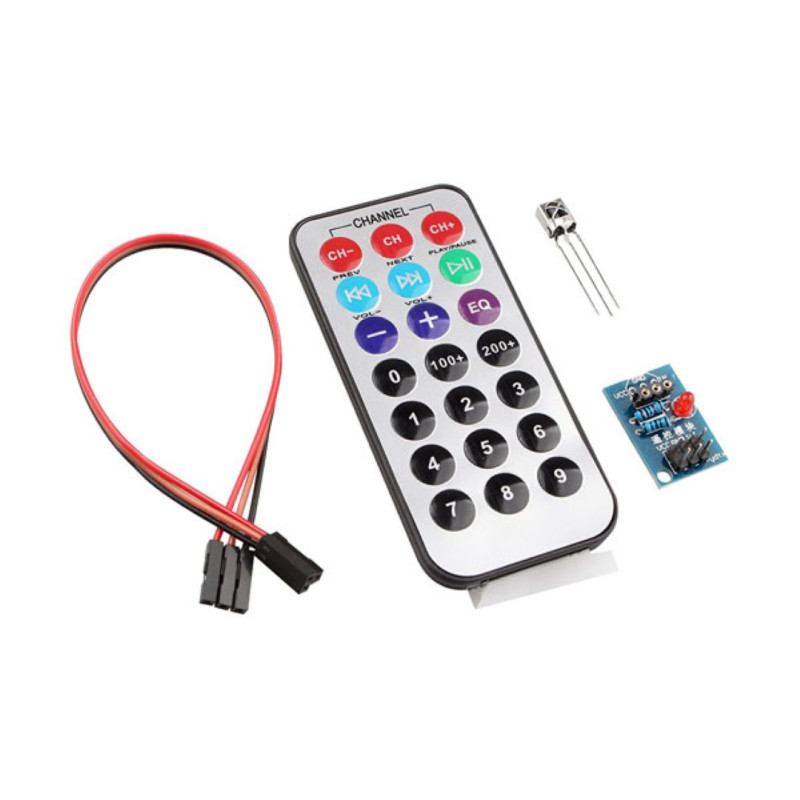

Package Contents

  • 1 x 21-button IR remote control

  • 1 breakout board with HX1838 or VS1838 IR receiver

  • 1 CR2025 button battery for the remote control

SKU: HX1838

LINK to Resources and Programs: Click HERE
