GSM and PSTN remote control combiner for burglar alarm, gate opener, boiler

MANUAL

This device can handle alarm signals from burglar alarm control units and similar devices, as well as control the activation of electrical and electronic loads such as boilers, automatic gates, lights, and more via GSM and traditional Telecom landline networks. A single product for multiple functions!

Device functions that can be used simultaneously:

1. GSM and/or PSTN telephone dialer following an alarm trigger input (minimum 3 seconds) from burglar alarm control units or sensors and similar:

• Trigger 1 with activation by providing positive 12V to the input with sending SMS and calling numbers on GSM and PSTN and message playback

• Trigger 2 with activation by providing positive 12V to the input with sending SMS and with calling numbers on GSM and PSTN and message playback

• Trigger 3 with activation by providing negative (GND) to the input with call to numbers on PSTN line and message playback (if PSTN is active, otherwise it signals via SMS on GSM)

• Trigger 4, activated by supplying negative (GND) to the input, allows you to send an SMS alert when the input status changes to the first two digits of the administrator's dedicated alarm numbers. This function can be useful, for example, to report power failures on the mains by connecting an external relay to the input that switches the input to ground (GND) if active. For this function, the device must have a mains power supply via a backup battery or UPS.

2. Remote activation of electrical and electronic loads via GSM and PSTN for controlling, for example, the activation of boilers, lights, automatic gates, etc.

• Output 1 can be activated as a pushbutton (2-second pulse) via a dedicated SMS command. The output provides a negative during output activation, to which external 12V DC relays (not supplied) can be connected, with a coil connected between +12V DC and the output.

• Output 2 can be activated either as a button (2-second pulse) or as an ON/OFF switch via SMS commands. The output provides a negative voltage when the output is activated. External 12V DC relays (not supplied) can be connected to the output. The coil must be connected between +12V DC and the output. Ideal for controlling lights, boilers, etc.

• Output 3 can be activated either as a button (2-second pulse) or as an ON/OFF switch via SMS commands. The output provides a negative voltage when activated, to which you can connect external 12V DC relays (not supplied) with a coil connected between +12V DC and the output. Ideal for controlling lights, boilers, etc.

• Output 4 can be activated as a button (3-second pulse) in the event of an unanswered call from an authorized number. The output has relays with SPDT output contacts (NO, NC, C contacts) to which low-voltage short-circuit contacts or external relays can be connected. This output is ideal for the gate opening function, which allows one or more authorized numbers to control the gate opening without using credit on the call, which is immediately hung up without an answer (activating the relay contact for 3 seconds, short-circuiting the NO and C contacts). Control of this output can be freely authorized or de-authorized for all numbers in memory (max 20).

3. GSM remote control with two-way audio of the installation site

• In the event of an alarm call, you can activate two-way audio by communicating with the surrounding environment. You can activate listening only or speaking as well. This function can only be activated on the stored numbers you wish to activate. This mode only works with GSM.

SPECIFICATIONS:

• Power supply 12v 100mA via battery or power supply (not supplied)

• Supports GSM and PSTN networks (can be used together or separately)

• Quadband GSM 850/900/1800/1900 Mhz

• 2 Recordable Voice Messages

• User-modifiable default SMS messages

• 20 alarm number storage locations (1-10 SMS, 11-20 call)

• 4 Types of activation by alarm signal trigger giving positive or negative

• 3 ON/OFF outputs controllable by SMS

• 1 Pulse output controllable by unanswered call with stored number for gate opener use

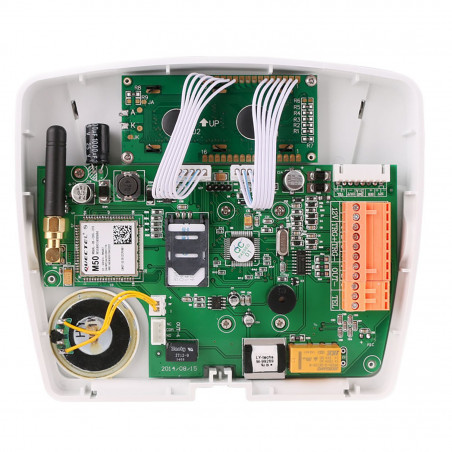

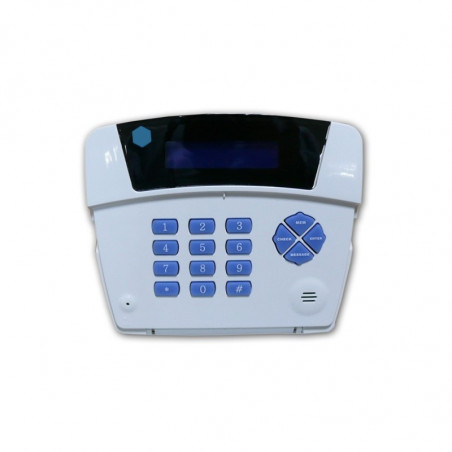

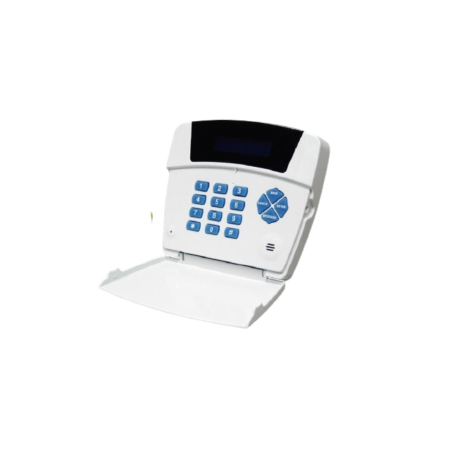

• LCD display with keypad for simple and immediate device settings

• Equipped with built-in microphone and speaker

• Remote monitoring of the installation site via two-way call (speak/listen)

• Activation and deactivation of alarm inputs via SMS and keyboard

• PASSWORD protected functions

• Input and output status monitoring SMS
