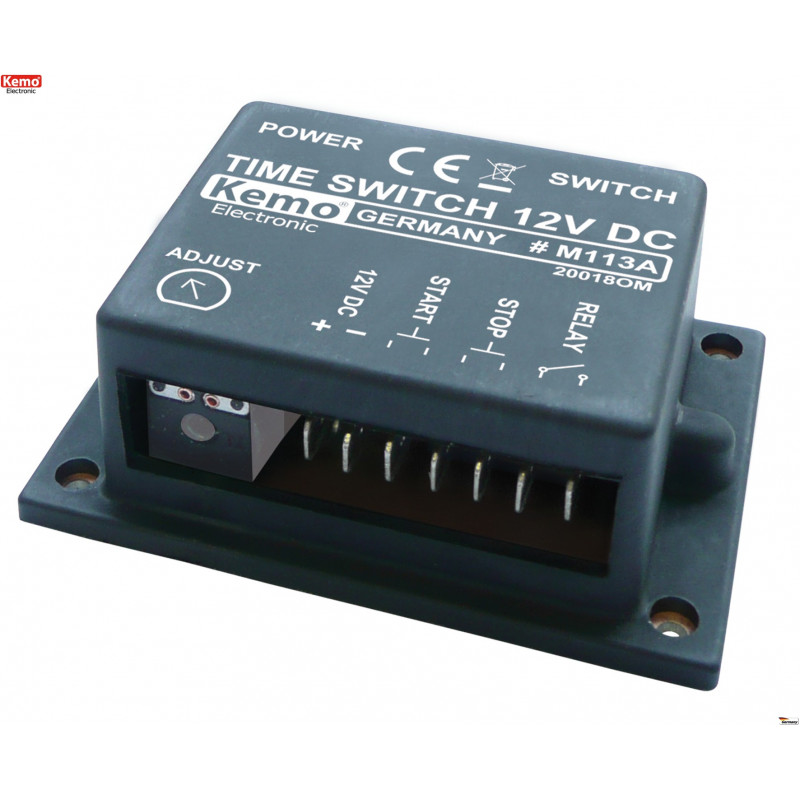

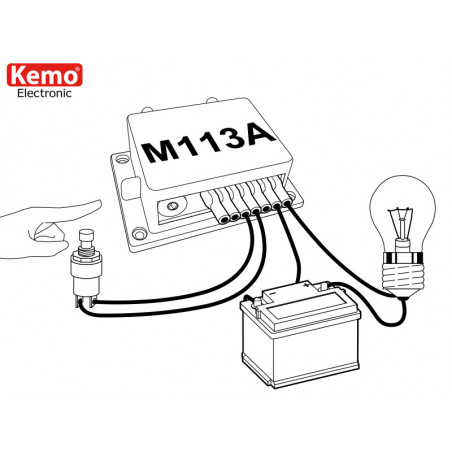

Monostable timer with start/stop buttons, 12V DC, adjustable from 2 seconds to 23 minutes, with relay output

Compact low-voltage timer operating at 12-15V DC with connections for a start and stop button (not supplied). Output controlled by a dry NO contact relay that can control loads of up to 25V 3A (increasable with the use of additional external relays).

The timer operates in a monostable mode: by pressing the start button, the timer activates and activates its relay output by closing the NO contact. Once the time set via the appropriate setting has elapsed, the relay output deactivates by opening the NO contact. The timer can be interrupted at any time by pressing the stop button.

The relay activation time is adjustable, via a specific selector on the device, from 2 seconds up to 23 minutes with an accuracy of +/-30%.

Power indication and relay output activation via two LEDs.

Please note: buttons are not included. Two NO buttons are required to close the appropriate contacts when pressed. If you also need the buttons, please request a quote.

SPECIFICATIONS

• Power supply 12V-15V DC

• Maximum current consumption approx. 20mA / 80mA (with relay active)

• Relay output activation timer time adjustable via selector from 2 seconds to approximately 23 minutes continuously (accuracy +/- 30%)

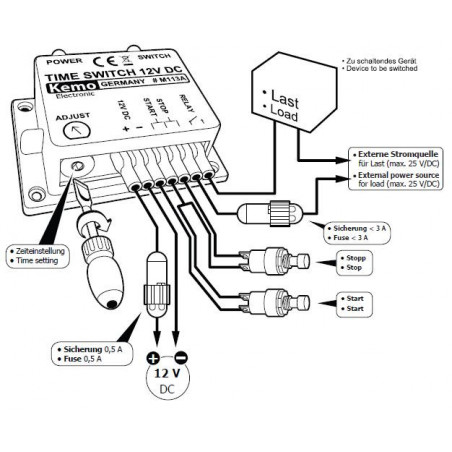

• Faston connection: 2 start button contacts, 2 stop button contacts, 2 power contacts, 2 NO (normally open) contact output contacts

• Buttons not supplied (NA buttons required)

• Power indication and relay activation via 2 LEDs

• Relay output with clean NO contact for maximum load 25V 3A (increasable with external relays)

• Monostable operation: by pressing start the relay activates and remains active until the set time expires, by pressing stop it is possible to interrupt the timing and deactivate the relay at any time

• Ideal as a low voltage stair light timer, for the control of electrical and electronic devices

• Electronic timing management

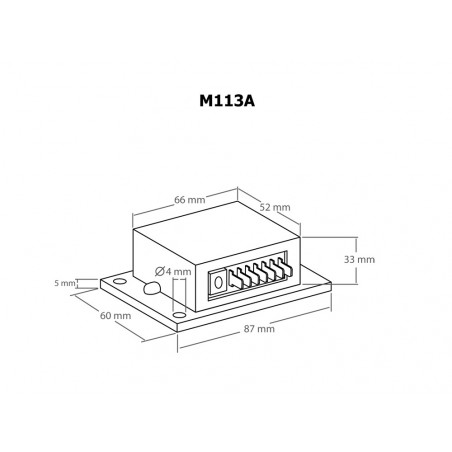

• Dimensions approx. 87 x 60 x 33 mm

• Plastic case with fixing holes
