RELPOL RG25 – Modular relay DIN 2 NO 25 A, coil 230 V AC

€39.00
Tax included

RELPOL RG25-3022-28-3230 modular electromagnetic relay for DIN rail, with 2 normally open contacts (DPST-NO) and 230 V AC coil. Rating for resistive loads: 25 A at 400 V AC or 25 A at 24 V DC. Connections via screw terminals; dimensions 26 × 53.7 × 75.5 mm.

Quantity
Last items in stock

  Secure Payments

Pay safely with Credit Card, PayPal, Amazon Pay or Bank Transfer

  Fast Shipping

We ship across Europe and worldwide with UPS, DHL and DPD

  30-Day Easy Return

You have 30 days from delivery to return the product if you're not satisfied

The RELPOL RG25-3022-28-3230 is an industrial electromagnetic relay in modular format for DIN rail mounting . It has two normally open contacts (2 NO, DPST-NO) and a 230 V AC coil , with connections via screw terminals.

Contact Range

For resistive loads , the indicated capacity is 25 A at 400 V AC or 25 A at 24 V DC . The maximum current per contact is 25 A. For other types of loads, check the operating limits in the manufacturer's documentation.

Technical features

  • Manufacturer: RELPOL
  • Series: RG25
  • Full code: RG25-3022-28-3230
  • OEM Number: 862722
  • Type: industrial electromagnetic relay

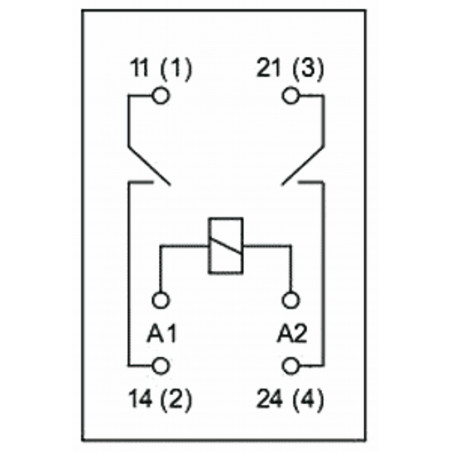

  • Contact configuration: 2 NA (DPST-NO)
  • Nominal coil voltage: 230 V AC
  • Minimum / maximum coil voltage: 161 / 253 V AC
  • Coil resistance: 6.8 kΩ
  • Coil power consumption: 3 VA
  • Current rating with AC resistive load: 25 A / 400 V AC
  • Current rating with DC resistive load: 25 A / 24 V DC
  • Maximum current per contact: 25 A
  • Peak current: 40 A
  • Maximum switching voltage: 440 V AC / 250 V DC
  • Contact material: AgSnO₂
  • Contact resistance: 100 mΩ
  • Response time: 20 ms
  • Release time: 20 ms
  • Connections: screw terminals
  • Mounting: DIN rail

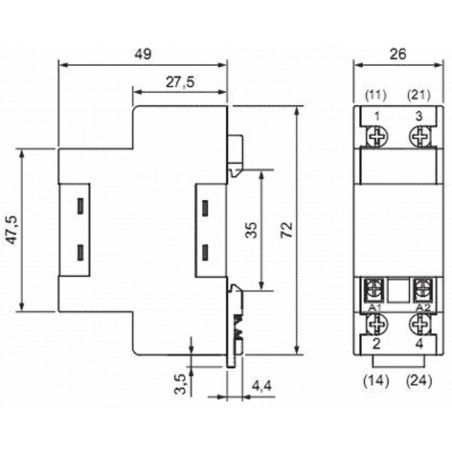

  • External dimensions: 26 × 53.7 × 75.5 mm
  • Working temperature: −25 to +85 °C
  • Weight: 130 g

Selection and installation

The coil must be operated at 230 V AC . The maximum switching voltages of the contacts do not imply a capacity of 25 A at any voltage: size the load based on the manufacturer's data and the usage category.

Check the compatibility of the control circuit and the load before installation. Wiring must be performed by qualified personnel.

RG25-3022-28-3230
5900005225536
