ATC-105 RS232 to RS485/RS422 Converter with Optical Isolation 3500 Vrms
€55.00
VAT included
ATC-105 RS232 to RS422/RS485 converter with 3500 Vrms optocoupler isolation. DB9 female connector and 4-pin output, speeds up to 115.2 kbit/s, 600 W surge protection and 15 kV ESD protection. External 9 V power supply included.
Secure Payments
Pay securely with Credit Card, PayPal, Amazon Pay, Bank Transfer or PostePay
Fast Shipping
We deliver throughout Europe and worldwide with UPS, DHL and DPD
Easy 30-Day Returns
You have 30 days from delivery to return the product if you are not satisfied

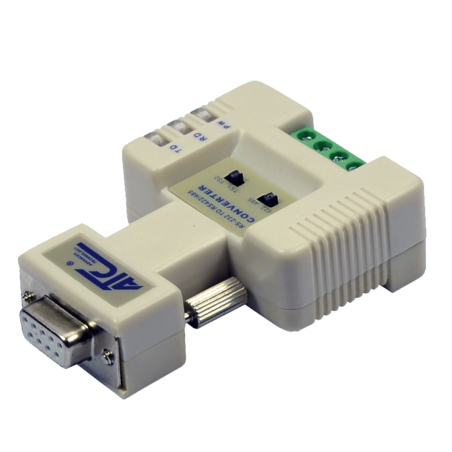

ATC-105 Serial Converter with Optical Isolation
The ATC-105 is a compact and cost-effective RS232 to RS422/RS485 converter featuring optocoupler-optical galvanic isolation between the interfaces. It allows you to connect RS422 or RS485 devices to an RS232 serial port.

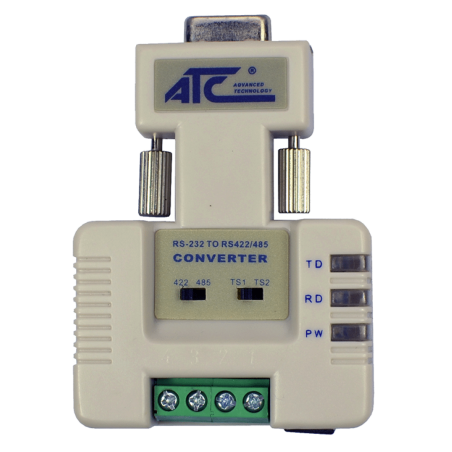

The female DB9 connector can be inserted directly into the male DB9 of a DTE port, such as that of a PC. The RS422/RS485 interface is available on 4 terminals , for wiring the serial lines.
Mode of operation
You can select RS422 or RS485 mode and DTE or DCE operation. The converter supports half-duplex or full-duplex asynchronous communications. In RS485, transmission switching is automatic and transparent to connected devices.
Insulation and protections
The ATC-105 version uses optical isolation between RS232 and RS422/RS485, with rated values of 3500 Vrms / 500 V DC . It integrates 600 W surge protection on RS422/RS485 and 15 kV electrostatic discharge protection on RS232 .
Technical specifications
| Characteristic | ATC-105 Specification |
|---|---|
| Conversion | RS232 to RS422/RS485 |
| Insulation | Optical photocoupler, 3500 Vrms / 500 V DC |
| RS232 connector | DB9 female |
| RS422/RS485 connection | 4 clamps |
| Diet | 9–24 V DC |
| Power absorbed | 1 W |
| RS422/RS485 surge protection | 600 W |
| RS232 ESD Protection | 15 kV |
| Operating modes | Asynchronous, half duplex or full duplex |
| Transmission speed | Up to 115.2 kbit/s |
| RS485 distance | Up to 1200 m; actual distance depends on speed, wiring and installation conditions |
| LED indicators | TD, RD and PWR |
| Operating temperature | From −20 to +70 °C |
| Operating humidity | 5–95% |
Power supply and equipment

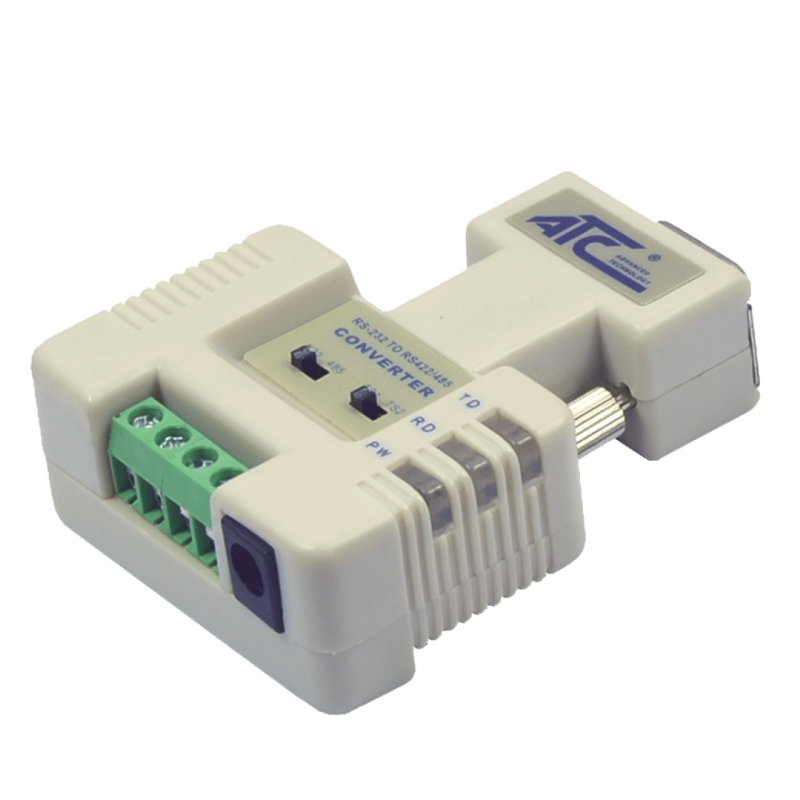

The device requires external power and comes with a 9V AC/DC adapter included .
Version identification
This item is the ATC-105 model with optical isolation . The ATC-105N model uses electromagnetic isolation and has different specifications; the data in this data sheet applies to the ATC-105 only.
ATC-105
2 Items
Data sheet
- Codice prodotto
- ATC-810
- Produttore
- ATC TECHNOLOGY
ATC-105 RS232 to RS422/RS485 converter with 3500 Vrms optocoupler isolation. DB9 female connector and 4-pin output, speeds up to 115.2 kbit/s, 600 W surge protection and 15 kV ESD protection. External 9 V power supply included.
