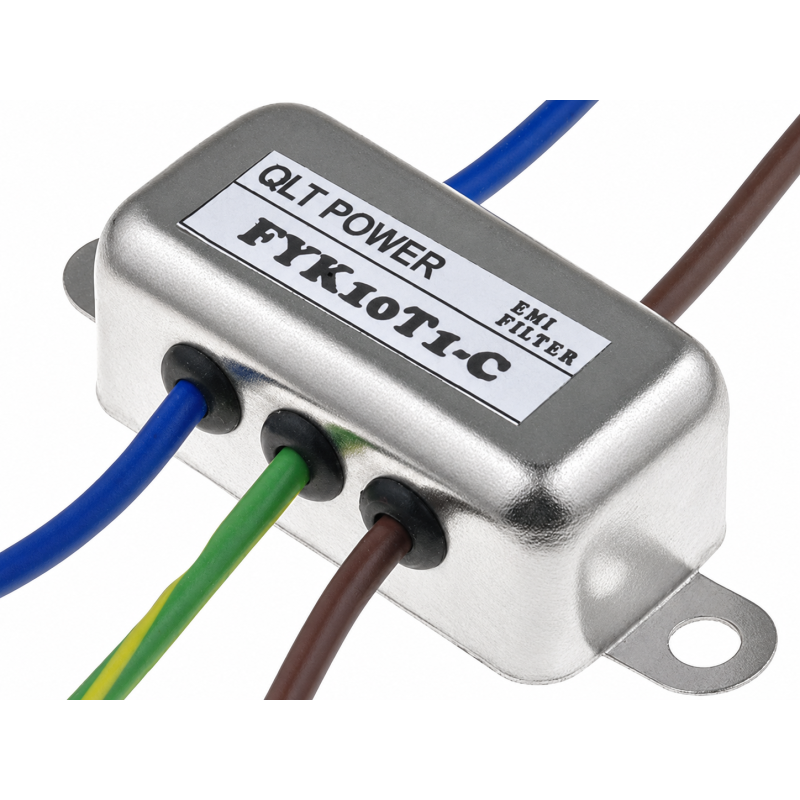

QLT POWER FYK10T1-C 250 V AC 10 A EMI noise suppression mains filter with cables

The QLT POWER FYK10T1-C is an EMI noise filter for reducing electromagnetic interference on the power supply lines of compatible electrical and electronic equipment. It supports a working voltage of 250 V AC and a maximum current of 10 A.

Connections are made using approximately 10 cm long conductors , which can be used with terminals suitable for the application. The metal housing is equipped with fixing holes.

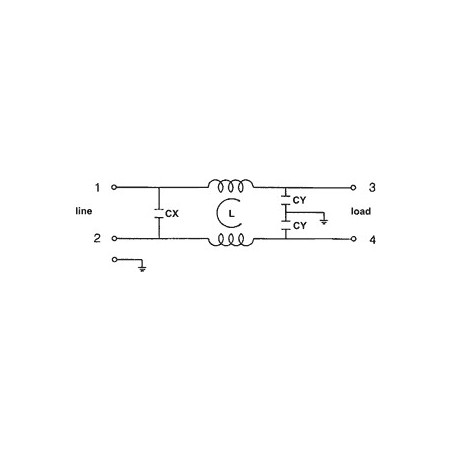

Connections

• Input: phase, neutral and earth
• Output: phase and neutral
• Terminals: conductors on electric cable, length approximately 10 cm

Technical features

• Manufacturer: QLT POWER
• Model: FYK10T1-C
• Series: FYK
• Type: EMI noise filter
• Working voltage: 250 V AC
• Maximum working current: 10 A
• Inductance of each winding: 0.3 mH
• Capacitance Cx: 100 nF
• Capacitance Cy: 3.3 nF
• Leakage current: 0.8 mA
• Working temperature: −25 to +85 °C
• Minimum insulation resistance: 100 MΩ
• AC test voltage: 1.8 kV

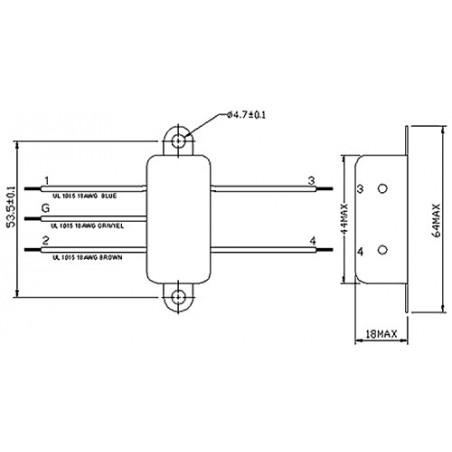

• Mounting hole diameter: 4.7mm
• Mounting hole spacing: 53.5 mm
• Gross weight: 40 g

Use and compatibility

Suitable for filtering the mains in compatible devices and for replacing a damaged filter when the electrical data, connections, and mechanical characteristics match those required by the device. Check the current draw, size, and mounting points before purchasing.

The filter operates on mains voltage: installation must be carried out by qualified personnel, respecting the connection diagram and the manufacturer's instructions.
