MT8870 5V DTMF Decoder Module with Digital Outputs for Arduino Microcontrollers

€4.50
Tax included

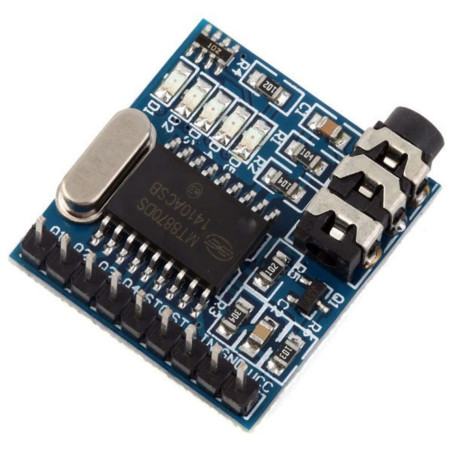

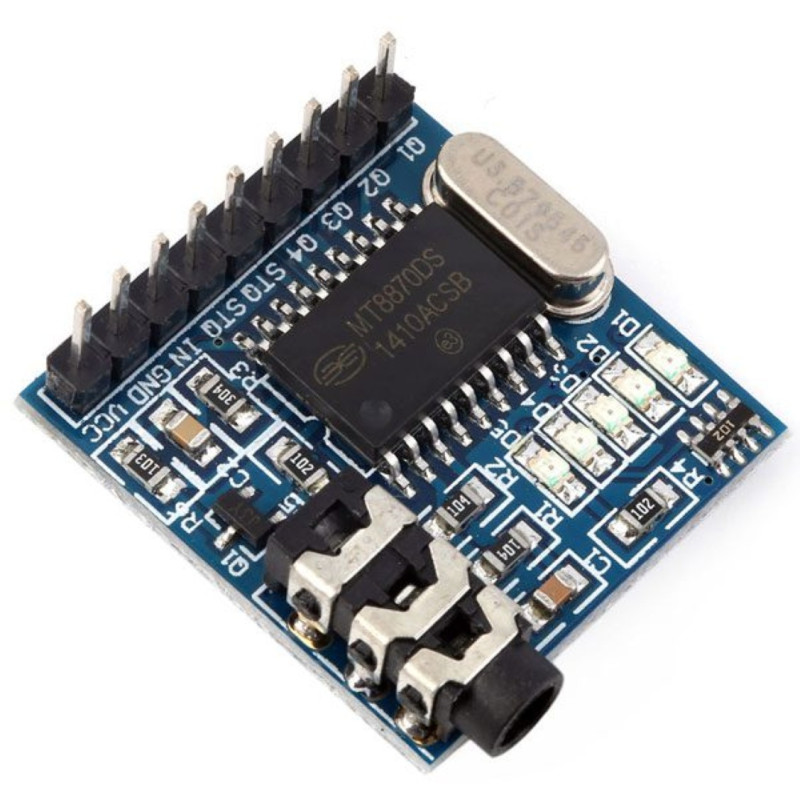

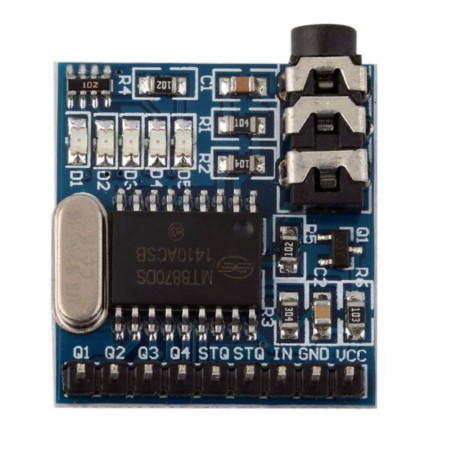

DTMF decoder module based on MT8870 chip , designed to recognize and decode multi-frequency tones coming from phones, audio devices and other compatible sources. It has 4 digital outputs Q1-Q4, STD output, 5 status LEDs, 3.5 mm jack audio input and 9-pin strip connector . 5V DC power supply. Ideal for Arduino , microcontrollers, automations, activators and remote control systems.

Quantity
Last items in stock

  Secure Payments

Pay safely with Credit Card, PayPal, Amazon Pay or Bank Transfer

  Fast Shipping

We ship across Europe and worldwide with UPS, DHL and DPD

  30-Day Easy Return

You have 30 days from delivery to return the product if you're not satisfied

The MT8870 DTMF Decoder module allows you to recognize and decode DTMF (Dual-Tone Multi-Frequency) tones coming from a landline, mobile phone or other compatible audio source.

The circuit is based on the well-known MT8870 decoder and converts the received tone into a digital code available on the four outputs Q1, Q2, Q3 and Q4 .

The outputs can be easily interfaced with Arduino , computers, microcontrollers and digital circuits , allowing DTMF commands to be used within numerous control and automation projects.

Applications

The module can be used to create, for example:

  • DTMF control systems

  • Relay activators

  • Automation systems

  • Interfaces for Arduino and microcontrollers

  • RC Servo Control

  • Remote control systems

  • Electronic experimentation projects

  • Interfaces for alarm and signaling systems

Audio input

DTMF tones are supplied to the module through a convenient 3.5mm audio jack socket .

The MT8870 decoder analyses the received signal and, when it recognises a valid DTMF tone, makes the corresponding code available through the digital outputs.

Digital outputs

The module has four data outputs:

  • Q1

  • Q2

  • Q3

  • Q4

The STD signal is also available, indicating that a valid tone has been recognized.

There are 5 status LEDs , useful for directly viewing the operation and status of the outputs.

DTMF Tone Encoding

The module recognizes the standard numeric tones 0-9 , the symbols * and # , as well as the tones A, B, C and D , which are not normally available on standard telephone keypads.

Tone STD Q4 Q3 Q2 Q1
No tone THE Z Z Z Z
1 H 1 0 0 1
2 H 0 0 1 0
3 H 0 0 1 1
4 H 0 1 0 0
5 H 0 1 0 1
6 H 0 1 1 0
7 H 0 1 1 1
8 H 1 0 0 0
9 H 1 0 0 1
0 H 1 0 1 0
* H 1 0 1 1
# H 1 1 0 0
TO H 1 1 0 1
B H 1 1 1 0
C H 1 1 1 1
D H 0 0 0 0

H = high logic level – L = low logic level – Z = high impedance.

Technical features

  • Decoder: MT8870

  • Signal Type: DTMF

  • Recognized tones: 0-9, *, #, A, B, C, D

  • Data outputs: Q1, Q2, Q3, Q4

  • STD signal: present

  • Status LEDs: 5

  • Audio input: 3.5mm jack

  • Connector: 9-pin strip

  • Power supply: 5V DC

  • Dimensions: 27 × 25 × 12 mm

  • SKU: YC047

Thanks to its dimensions of only 27 × 25 × 12 mm , the module can be easily integrated into equipment and prototypes where it is necessary to transform DTMF commands into digital signals that can be used by a control circuit .
